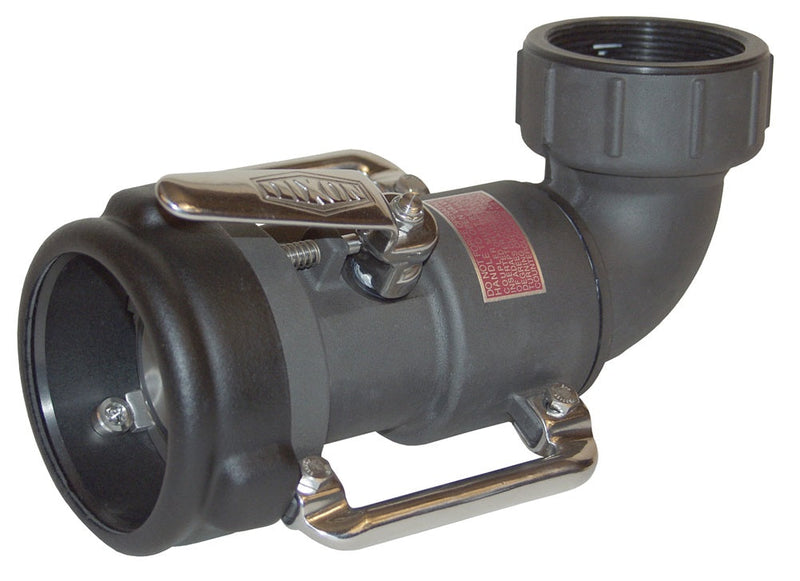

BS62-300 by Dixon Valve | Dry Disconnect | Bayonet Style | 90° Elbow | 3" Size | Swivel Coupler x Female NPT (ZERK Fitting) | FKM Seal | Anodized Hard Coat Aluminum

Save $130.02

$1,265.31

$1,265.31 - $1,265.31

$1,265.31

$1,135.29

$1,135.29 - $1,135.29

$1,135.29

Dixon Valve
Dry Disconnect | Bayonet Style | 90° Elbow | Swivel Coupler x Female NPT

For the spill-less transfer of petroleum products such as fuel oil, lube oil blending and tank truck delivery.

Quantity

Specifications for Variant SKU: BS62-300 Dixon
Shape (Orientation):	90 Degree
Ends Configuration:	3in Female Bayonet Style Dry Disconnect, 3in Female NPT
Material(s):	Aluminum
Seal Material(s):	Viton/FKM
Special Properties:	Swivel

Applications:
Bayonet dry disconnect fittings are ideally suited for the spill-less transfer of petroleum products such as fuel oil, lube oil blending, and tank truck delivery. The design of the Bayco bayonet dry disconnect system ensures a spill free connection, fluid cannot flow until couplings are connected together and the valve is opened. The coupling can then not be disconnected until the valve handle is closed.
Compatibility & Interchange Data:
Interchangeable with the Emco Wheaton™ Dry Break™.
Construction:
Swivels have a standard ZERK fitting. Material: Anodized Hard Coat Aluminum
Specifications:
Canadian registration number CRN# OH14055 all provinces. Maximum operating pressure: 85 PSI at 70°F (21°C).

Part Number	Size	Seal Material
BS61-200	2"	Nitrile Rubber
BS62-200	2"	FKM
BS61-300	3"	Nitrile Rubber
BS62-300	3"	FKM

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
