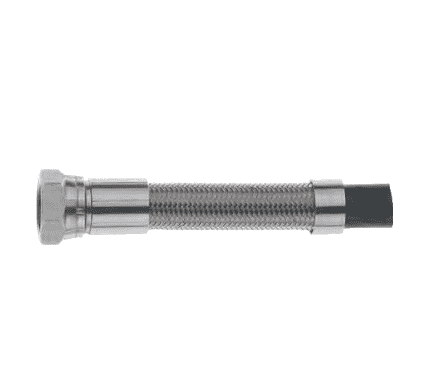

BSB-03-100 Dixon -3 Nominal Smooth Bore PTFE Hose - Black Conductive Tube - 3/16" Nominal Size - .125" Average ID - 100ft

BSB-03-100 Dixon Valve -3 Nominal Smooth Bore PTFE Hose - Black Conductive Tube - 3/16" Nominal Size - .125" Average ID - 100ft

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon PTFE Hose & Fittings - Nominal Smooth Bore PTFE Hose - Black Conductive Tube - 304 Stainless Braided (Fittings NOT Included)

Package Quantity: 100 FT

Specifications for Variant SKU: BSB-03-100 Dixon
Series: PTFE Hose and Fittings
Hose Color(s): Metallic
Dash Size: -3
Internal Diameter: 0.125in
Tubing Construction: Smooth Bore Static Dissipating PTFE
Cover Construction: Stainless Steel Braid
Special Properties: Static Dissipating Tube
Application:
  • Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels and steam.
Features:
  • Nominal standard smooth bore PTFE hose meets SAE100R14.
  • Size range: dash-3 to dash-20.
  • Temperature range: -76 deg. F to 500 deg. F (-60 deg. C to 260 deg. C).
  • 304 stainless braided.
Part Number Nominal Size Average ID Length in Feet Dash Size Working Pressure Burst Pressure Weight (Lbs.)
BSB-03-100 3/16" .125" 100ft -3 3000 PSI 12000 PSI N/A
BSB-04-100 1/4" .187" 100ft -4 3000 PSI 12000 PSI 6.5600
BSB-05-100 5/16" .250" 100ft -5 3000 PSI 12000 PSI 8.6200
BSB-06-100 3/8" .312" 100ft -6 2500 PSI 10000 PSI 10.5600
BSB-06T-100 3/8T" .375" 100ft -6T 2250 PSI 9000 PSI N/A
BSB-08-100 1/2" .405" 100ft -8 2000 PSI 8000 PSI 13.7400
BSB-10-100 5/8" .500" 100ft -10 1500 PSI 6000 PSI 15.7800
BSB-12-100 3/4" .625" 100ft -12 1200 PSI 4800 PSI N/A
BSB-12T-50 3/4T" .750" 50ft -12T 1100 PSI 4400 PSI N/A
BSB-16-50 1" .875" 50ft -16 1000 PSI 4000 PSI N/A
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
