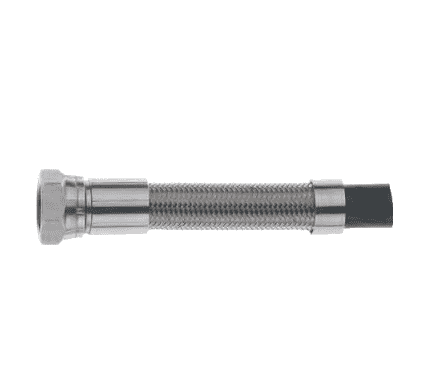

BSB-20Z Dixon Bulk -20Z Nominal Smooth Bore PTFE Hose - Black Conductive Tube (Double Braided) - 1-1/4" Nominal Size - 1.125" Average ID

BSB-20Z Dixon Valve Bulk -20Z Nominal Smooth Bore PTFE Hose - Black Conductive Tube (Double Braided) - 1-1/4" Nominal Size - 1.125" Average ID

Save $32.19 Save $32.19
$80.47
$80.47 - $80.47
$80.47
$48.28
$48.28 - $48.28
$48.28

Dixon PTFE Hose & Fittings - Nominal Smooth Bore PTFE Hose Bulk/Per Foot - Black Conductive Tube - 304 Stainless Braided (Fittings NOT Included)

Specifications for Variant SKU: BSB-20Z Dixon
Series: PTFE Hose and Fittings
Hose Color(s): Metallic
Dash Size: -20
Internal Diameter: 1.125in
Tubing Construction: Smooth Bore Static Dissipating PTFE
Cover Construction: Stainless Steel Braid
Special Properties: Static Dissipating Tube
Application:
  • Suitable for conveying chemicals, foods, pharmaceuticals, oils, gas, fuels and steam.
Features:
  • Nominal standard smooth bore PTFE hose meets SAE100R14.
  • Size range: dash-3 to dash-20.
  • Temperature range: -76 deg. F to 450 deg. F (-73 deg. C to 232 deg. C).
  • 304 stainless braided.
Part Number Nominal Size Average ID Dash Size Weight/Ft (Lbs.)
BSB-03 3/16" .125" -3 0.0470
BSB-04 1/4" .187" -4 0.0770
BSB-05 5/16" .250" -5 0.0980
BSB-06 3/8" .312" -6 0.1100
BSB-06T 3/8T" .375" -6T 0.1240
BSB-08 1/2" .405" -8 0.1240
BSB-10 5/8" .500" -10 0.1540
BSB-12 3/4" .625" -12 0.1700
BSB-12T 3/4T" .750" -12T 0.1980
BSB-16 1" .875" -16 0.2730
BSB-16T 1T" 1.000" -16T 0.3050
BSB-20Z* 1-1/4" 1.125" -20Z N/A
* Double Braided Bulk / By the Foot: We sell hose in Bulk Lengths. This means we make every effort to provide exact single lengths, however with Dixon guidelines on bulk hose, your order may come in multiple lengths and may be plus or minus 10% of your bulk order. There are no exceptions to the bulk guidelines and all prices listed on our website are in bulk price. By ordering through our website you agree that you have read, fully understand and agree to these terms and conditions.
