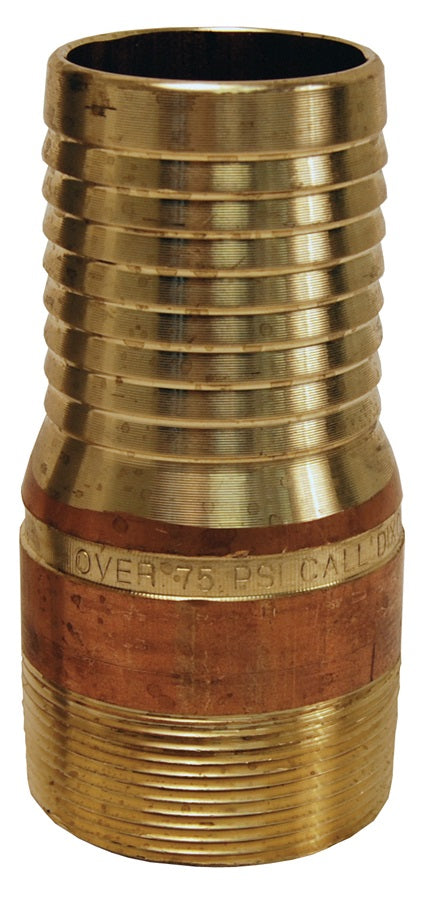

BST5 by Dixon Valve | King Combination Nipple | with Knurled Wrench Grip | 3/4" Male NPT x 3/4" Hose ID | Brass

Name: BST5 by Dixon Valve | King Combination Nipple | with Knurled Wrench Grip | 3/4" Male NPT x 3/4" Hose ID | Brass
Brand: Dixon
SKU: BST5 Dixon
Price: 24.32 USD
Availability: InStock

Save $1.99

$26.31

$26.31 - $26.31

$26.31

$24.32

$24.32 - $24.32

$24.32

Dixon Valve
King Combination Nipple | with Knurled Wrench Grip | Male NPT x Hose Barb

Recommended for low-pressure discharge and suction service for compatible liquids.

Quantity

Specifications for Variant SKU: BST5 Dixon
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male NPT, 3/4in Hose Barb
Material(s):	Brass

Safety Notes:
King Combination Nipples are not recommended for steam. 1-1/4" and above are not for compressible products such as air or nitrogen. The working pressure may vary with the construction of the hose, the type of clamping system used and the application. In accordance with the R.M.A. bulletin for oil suction and discharge hose, a coupled length of hose in any size, should be tested to 1-1/2 times the working pressure and held for fifteen minutes without leaking or coupling movement. For additional information and detailed instruction on testing procedures, see the Rubber Manufacturers Association (R.M.A.) handbook.

Unplated Steel Part Number	Plated Steel Part Number	Brass Part Number	Aluminum Part Number	Size
ST1	STC1	BST1	AST1	1/2"
ST5	STC5	BST5	AST5	3/4"
ST10	STC10	BST10	AST10	1"
ST15	STC15	-	-	1-1/4"
ST20	STC20	-	-	1-1/2"
ST25	STC25	-	-	2"

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
