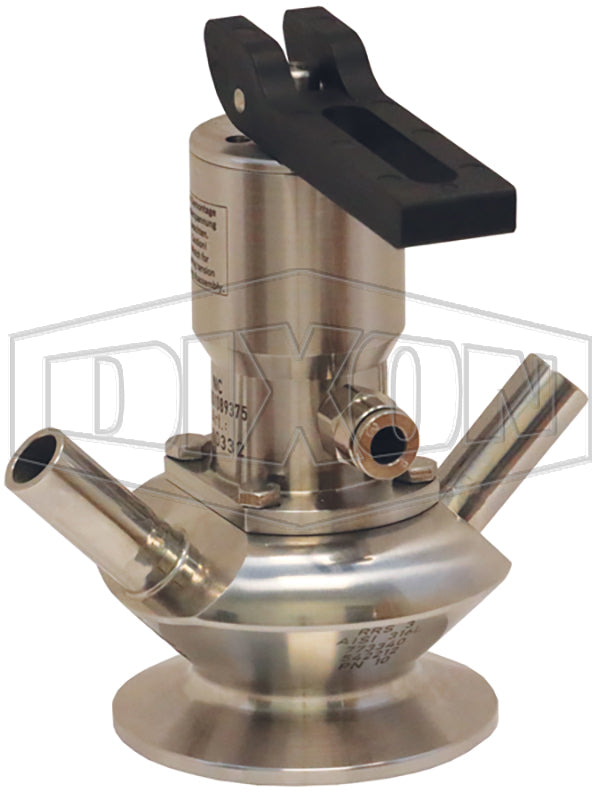

BSVD-SC200B050 Dixon Valve/Rieger 3A Sample Valve - Dual Port with Pneumatic Actuator with Self Closing Lever - 2" Clamp Valve - 1/2" Weld Port

BSVD-SC200B050 Dixon Valve/Rieger 3A Sample Valve - Dual Port with Pneumatic Actuator with Self Closing Lever - 2" Clamp Valve - 1/2" Weld Port

Save $760.03 Save $760.03
$1,900.08
$1,900.08 - $1,900.08
$1,900.08
$1,140.05
$1,140.05 - $1,140.05
$1,140.05

Dixon Sanitary Fittings
Dixon Valve/Rieger 3A Sample Valve - Dual Port with Pneumatic Actuator with Self Closing Lever

The BSV Series sample valve allows easy and safe sampling of liquids from closed systems such as vessels and pipelines.

These valves are located in the pharmaceutical, bio-pharmaceutical, biochemical, cosmetic, food, dairy and beverage markets.
Specifications for Variant SKU: BSVD-SC200B050 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel, 304 Stainless Steel
Features:
  • Valve body made from solid bar
  • No dead space
  • Drainable
  • Connections suitable for orbital welding
  • Available with single or dual ports
  • Hermetically sealed against environment
  • Optimum cleanability
  • Change of seals without special tools
  • Long life of the PTFE-bellows
  • Low spare part costs
Construction:
  • Product contact metal: 316L stainless steel, ≤ 32Ra surface finish
  • Non-product contact metal: 304 stainless steel, ≤ 63Ra surface finish
  • Product contact seals: PTFE Bellows
Specifications:
  • Maximum pressure: 116 PSI
  • Actuator control air pressure: 87-145 PSI
  • Maximum temperature: 250°F (121°C)
  • Maximum cleaning temperature: 275°F (135°C) for 20 minutes
Part Number Clamp Valve Size Weld Port Size
BSVD-SC050B025 1/2" - 3/4" 1/4"
BSVD-SC050B050 1/2" - 3/4" 1/2"
BSVD-SC050B375 1/2" - 3/4" 3/8"
BSVD-SC100B025 1" - 1-1/2" 1/4"
BSVD-SC100B050 1" - 1-1/2" 1/2"
BSVD-SC100B375 1" - 1-1/2" 3/8"
BSVD-SC200B025 2" 1/4"
BSVD-SC200B050 2" 1/2"
BSVD-SC200B375 2" 3/8"
BSVD-SC250B025 2-1/2" 1/4"
BSVD-SC250B050 2-1/2" 1/2"
BSVD-SC250B375 2-1/2" 3/8"
BSVD-SC300B025 3" 1/4"
BSVD-SC300B050 3" 1/2"
BSVD-SC300B375 3" 3/8"
BSVD-SC400B025 4" 1/4"
BSVD-SC400B050 4" 1/2"
BSVD-SC400B375 4" 3/8"
Replacement Parts
Part Number Description Includes
BSV-NRKS050400 Repair Kit for BSV Sample Valves (1) Silicone O-ring
(1) PTFE Bellows
