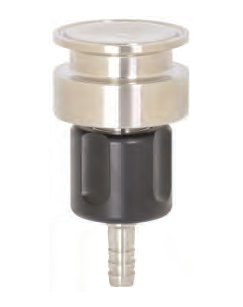

BSVICV-N050025 Dixon Valve Inline Sample Valve - 1/2" Valve Size - 1/4" Barb Size

BSVICV-N050025 Dixon Valve Inline Sample Valve - 1/2" Valve Size - 1/4" Barb Size

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Sanitary Fittings
BSVICV Series | Inline Sample Valve
Specifications for Variant SKU: BSVICV-N050025 Dixon
Shape (Orientation): Straight
Material(s): 316L Stainless Steel
Seal Material(s): Viton/FKM

What are the Features?

  • Standard finish to 20 Ra ID / 32 Ra OD
  • Fully traceable (material test reports)
  • Minimal internal dead-leg area
  • Temperature rating: 300°F at 200 PSI

How is it Constructed?

  • All 316L stainless wetted part construction
  • FKM O-ring
  • Virgin PTFE seat for positive closure
Part Number Valve Size Barb Ø
A		 Ferrule Ø
B
BSVICV-N050025 1/2" 1/4" 0.99"
BSVICV-N050050 1/2" 1/2" 0.99"
BSVICV-N075025 3/4" 1/4" 0.99"
BSVICV-N150375 1-1/2" 3/8" 1.98"
BSVICV-N200050 2" 1/2" 2.52"
