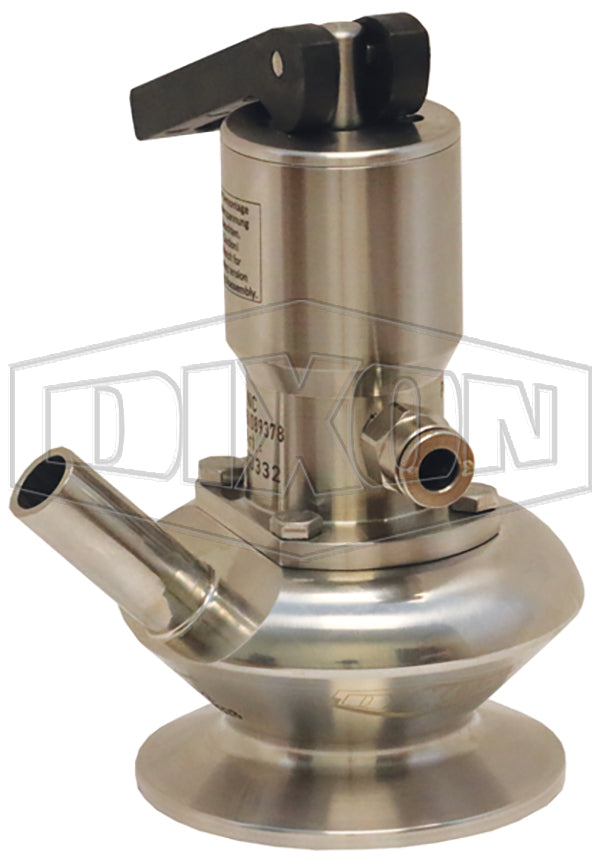

BSVS-OC100B025 Dixon Valve/Rieger 3A Sample Valve - Single Port with Pneumatic Actuator with Open Lever - 1" - 1-1/2" Clamp Valve - 1/4" Weld Port

BSVS-OC100B025 Dixon Valve/Rieger 3A Sample Valve - Single Port with Pneumatic Actuator with Open Lever - 1" - 1-1/2" Clamp Valve - 1/4" Weld Port

Save $731.09 Save $731.09
$1,827.72
$1,827.72 - $1,827.72
$1,827.72
$1,096.63
$1,096.63 - $1,096.63
$1,096.63

Dixon Sanitary Fittings
Dixon Valve/Rieger 3A Sample Valve - Single Port with Pneumatic Actuator with Open Lever

The BSV-Series sample valve allows easy and safe sampling of liquids from closed systems such as vessels and pipelines.

These valves are located in the pharmaceutical, bio-pharmaceutical, biochemical, cosmetic, food, dairy and beverage markets.
Specifications for Variant SKU: BSVS-OC100B025 Dixon
Shape (Orientation): No Orientation
Material(s): 316L Stainless Steel, 304 Stainless Steel
Features:
  • Valve body made from solid bar
  • No dead space
  • Drainable
  • Connections suitable for orbital welding
  • Hermetically sealed against environment
  • Optimum cleanability
  • Change of seals without special tools
  • Long life of the PTFE-bellows
  • Low spare part costs
Construction:
  • Product contact metal: 316L stainless steel, ≤ 32Ra surface finish
  • Non-product contact metal: 304 stainless steel, ≤ 63Ra surface finish
  • Product contact seals: PTFE Bellows
Specifications:
  • Maximum pressure: 116 PSI
  • Actuator control air pressure: 87-145 PSI
  • Maximum temperature: 250°F (121°C)
  • Maximum cleaning temperature: 275°F (135°C) for 20 minutes
Part Number Clamp Size Weld Port Size
BSVS-OC050B025 1/2" - 3/4" 1/4"
BSVS-OC050B050 1/2" - 3/4" 1/2"
BSVS-OC050B375 1/2" - 3/4" 3/8"
BSVS-OC100B025 1" - 1-1/2" 1/4"
BSVS-OC100B050 1" - 1-1/2" 1/2"
BSVS-OC100B375 1" - 1-1/2" 3/8"
BSVS-OC200B025 2" 1/4"
BSVS-OC200B050 2" 1/2"
BSVS-OC200B375 2" 3/8"
BSVS-OC250B025 2-1/2" 1/4"
BSVS-OC250B050 2-1/2" 1/2"
BSVS-OC250B375 2-1/2" 3/8"
BSVS-OC300B025 3" 1/4"
BSVS-OC300B050 3" 1/2"
BSVS-OC300B375 3" 3/8"
BSVS-OC400B025 4" 1/4"
BSVS-OC400B050 4" 1/2"
BSVS-OC400B375 4" 3/8"
Replacement Parts
Part Number Description Includes
BSV-NRKS050400 Repair Kit for BSV Sample Valves (1) Silicone O-ring
(1) PTFE Bellows
