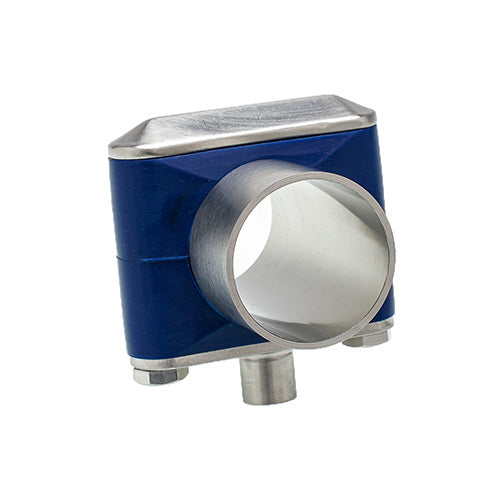

BTCM-100P-304ZP by ACL Hygienic | Zero Puddle Silicone Base Tread Coupling Mount w/ Tight Fit | 1" Pipe Size x 3/8" Thread Size | Blue | 304 Stainless Steel

BTCM-100P-304ZP by ACL Hygienic | Zero Puddle Silicone Base Tread Coupling Mount w/ Tight Fit | 1" Pipe Size x 3/8" Thread Size | Blue | 304 Stainless Steel

Save $25.70 Save $25.70
$64.25
$64.25 - $64.25
$64.25
$38.55
$38.55 - $38.55
$38.55

ACL Hygienic
Sanitary, Washdown, and Pipe Hanging Systems:Pipe Hanging Systems - Base Mount Thread Coupling Mount
Specifications for Variant SKU: BTCM-100P-304ZP ZSi-Foster
Shape (Orientation): Straight
Material(s): Silicone, 304 Stainless Steel
Applications:
  • Cleanrooms and mechanical areas; not limited to: biotech, pharmaceutical, food processing, beverage, dairy, cosmetic, chemical, water treatment, and semiconductor industries.
  • Low flow & low pressure systems with moderate vibration: WFI, SIP, CIP, process, utility & instrument lines, WFI, SIP, CIP, process, utilities & instrument lines
Sizes:
  • Support Range: 1/4" – 6" Tube and 1/2" – 6" Pipe for Copper and Conduits including PVC Coated Pipe
  • Tight fit Anchors and loose fit Guides are offered
Features:
  • Reduced OD allows hanger to be encased under the insulation’s jacket
  • ZERO PUDDLE Silicones inserts raised geometry facilitates drainage of liquids on vertical/riser lines creating maintenance uptime
  • There are no exposed threads or openings
Materials:
  • 304 and 316 stainless steels
  • ZERO PUDDLE inserts are FDA grade silicone rubber
Specifications:
  • Intermittent temperatures from -40F to 320F
  • Continues temperatures from -20F to 302F
Benefits:
  • Guides loose fit allow the line to freely expand and contract during thermal cycling, preventing undo stress to welds
  • Hanger’s threaded section is elongated, increasing the housing’s elevation adjustment aiding in slope alignment
  • Insulation Envelope “IE”: Reduced OD allows hanger to be buried under the insulation jacket
  • Insulation Thickness: Line’s ODs are Encased Under Insulation
    • 1.0” of insulation : 1/2” Tube (0.5”) to 3” Copper (3.125”)
    • 1.5” of insulation : 3” Pipe (3.5”) to 4” Pipe (4.50”)
    • 2.0” of insulation : 6” Tube (6.0”) to 6” Pipe (6.625”)
  • There are no exposed threads or openings in hardware plates
  • All plates are cleaned polished
  • Hanger threads match MSS 69 rod OD requirement
Base Mount Thread Coupling Mount: FOR ATTACHMENT: Use Shielded Rod, a solid rod with threaded end(s) or an all thread rod
Part Number
(anchor/tight fit)		 Part Number
(guide/loose fit)		 Pipe Size Line OD H L W CL Round Coupling
Height Thread
XXXXXX - 1/2" 0.84" 1.7" 1.93" 0.75" 0.733" 0.47" 3/8"-16
BTCM-075P-304ZP BTCM-075P-304ZPG 3/4" 1.05" 1.7" 1.93" 0.75" 0.733" 0.47" 3/8"-16
BTCM-100P-304ZP BTCM-100P-304ZPG 1" 1.315" 2.19" 2.49" 0.75" 0.973" 0.47" 3/8"-16
BTCM-125P-304ZP BTCM-125P-304ZPG 1-1/4" 1.66" 2.69" 2.99" 0.88" 1.253" 0.47" 3/8"-16
BTCM-150P-304ZP BTCM-150P-304ZPG 1-1/2" 1.9" 2.69" 2.99" 0.88" 1.253" 0.47" 3/8"-16
BTCM-200P-304ZP BTCM-200P-304ZPG 2" 2.375" 3.19" 3.36" 0.88" 1.493" 0.59" 1/2"-13
BTCM-250P-304ZP BTCM-250P-304ZPG 2-1/2" 2.875" 3.63" 3.74" 0.88" 1.709" 0.59" 1/2"-13
ZSi Foster

ZSi Foster
