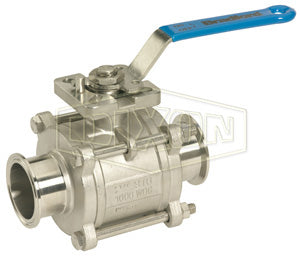

BV2CG-100CC-A Dixon Valve 1" Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle - Seat: 15% Glass Reinforced RTFE

BV2CG-100CC-A Dixon Valve 1" Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle - Seat: 15% Glass Reinforced RTFE

Save $120.08 Save $120.08
$300.20
$300.20 - $300.20
$300.20
$180.12
$180.12 - $180.12
$180.12

Dixon Valve
BV2-Series | 3 Piece Two-Way Sanitary Ball Valve | Clamp Ends | Standard Handle

Stainless Steel valve with 15% Glass Reinforced RTFE Seat.
Specifications for Variant SKU: BV2CG-100CC-A Dixon
Shape (Orientation): Straight
Ends Configuration: 1in Sanitary Clamp End, 1in Sanitary Clamp End, Some Ends Match
Material(s): Stainless Steel
Seal Material(s): Glass Reinforced RTFE
Sanitary Ball Valves

Dixon Valve | BV2-Series
3 Piece Sanitary Ball Valve | Clamp Ends

Stainless Steel valve with 15% Glass Reinforced RTFE Seat.

1

What are the main product features?
  • Live-loaded stem packing.
  • Balanced encapsulated construction minimizes cold flow.
  • Lockable handle can prevent accidental actuation.
  • Standard internal entry blow out proof stem design.
  • Compact design for areas with tight space restrictions.
  • Precision stainless steel balls reduce torque and friction losses while extending seat life.
  • Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow.
2

What are the construction specifications?
  • ID polish is Ra 32 minimum.
  • Integral ISO 5211 mounting pad.
  • Material: CF8M Stainless Steel.
  • Fully encapsulated construction produces bubble tight seal.
  • 15% glass reinforced tetrafluoroethylene seal, Food Grade Material: Specified for applications requiring higher cycle life than PTFE.
3

What are the specifications?
  • Pressure Rating: 1000 PSI WOG.
4

Which sizes or configurations are available?
Part Number Size Dimensions
A B C D E F
(mm)		 G
(mm)		 H
(mm)		 Break Torque
in. lbs.
BV2CG-050CC-A 1/2" 4.3" 4.9" 1.5" 2.0" 3.1" 36mm 42mm 9mm 37 in. lbs.
BV2CG-075CC-A 3/4" 4.7" 4.9" 1.8" 2.2" 3.4" 36mm 42mm 9mm 57 in. lbs.
BV2CG-100CC-A 1" 4.9" 5.4" 2.1" 2.4" 3.6" 42mm 50mm 11mm 127 in. lbs.
BV2CG-150CC-A 1-1/2" 5.6" 9.3" 2.7" 3.2" 4.4" 50mm 70mm 14mm 287 in. lbs.
BV2CG-200CC-A 2" 6.4" 9.3" 3.1" 3.8" 4.7" 50mm 70mm 14mm 309 in. lbs.
BV2CG-250CC-A 2-1/2" 7.8" 18.0" 3.8" 4.9" 5.2" 70mm 102mm 17mm 1089 in. lbs.
BV2CG-300CC-A 3" 9.0" 18.3" 4.2" 5.4" 5.7" 70mm 102mm 17mm 1997 in. lbs.
BV2CG-400CC-A 4" 9.6" 18.3" 5.3" 8.7" 6.9" 102mm 125mm 22mm 2452 in. lbs.
