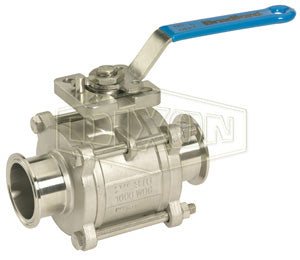

BV2CU-100CC-A Dixon Valve 1" Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle - Seat: UHMW

Name: BV2CU-100CC-A Dixon Valve 1" Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle - Seat: UHMW
Brand: Dixon
SKU: BV2CU-100CC-A Dixon
Price: 299.81 USD
Availability: InStock

Save $37.48

$337.29

$337.29 - $337.29

$337.29

$299.81

$299.81 - $299.81

$299.81

Dixon Sanitary Valves
Two-Way Encapsulated Sanitary 3 Piece Clamp End Ball Valve - Stainless Steel - Standard Handle

Seat: UHMW

Quantity

Specifications for Variant SKU: BV2CU-100CC-A Dixon
Shape (Orientation):	Straight
Material(s):	Stainless Steel
Seal Material(s):	UHMW

Features:
Balanced encapsulated construction minimizes cold flow. Live-loaded stem packing. Precision stainless steel balls reduce torque and friction losses while extending seat life. Lockable handle can prevent accidental actuation. Standard internal entry blow out proof stem design. Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow. Compact design for areas with tight space restrictions.
Construction:
Ultra-high molecular weight polyethylene seal, Food Grade Material: Specified for its low modulus of abrasion and minimal property degradation when exposed to moderate levels of radiation. Ideal for applications where fluorocarbons are not acceptable. ID polish is Ra 32 minimum. Fully encapsulated construction produces bubble tight seal. Integral ISO 5211 mounting pad. Material: CF8M Stainless Steel.
Specifications:
Pressure Rating: 1000 PSI WOG.


Part Number	Size	Dimensions
Part Number	Size	A	B	C	D	E	F (mm)	G (mm)	H (mm)	Break Torque in. lbs.
BV2CU-050CC-A	1/2"	4.3"	4.9"	1.5"	2.0"	3.1"	36mm	42mm	9mm	31 in. lbs.
BV2CU-075CC-A	3/4"	4.7"	4.9"	1.8"	2.2"	3.4"	36mm	42mm	9mm	47 in. lbs.
BV2CU-100CC-A	1"	4.9"	5.4"	2.1"	2.4"	3.6"	42mm	50mm	11mm	105 in. lbs.
BV2CU-150CC-A	1-1/2"	5.6"	9.3"	2.7"	3.2"	4.4"	50mm	70mm	14mm	238 in. lbs.
BV2CU-200CC-A	2"	6.4"	9.3"	3.1"	3.8"	4.7"	50mm	70mm	14mm	256 in. lbs.
BV2CU-300CC-A	3"	9.0"	18.3"	4.2"	5.4"	5.7"	70mm	102mm	17mm	1650 in. lbs.
BV2CU-400CC-A	4"	9.6"	18.3"	5.3"	8.7"	6.9"	102mm	125mm	22mm	2027 in. lbs.

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
