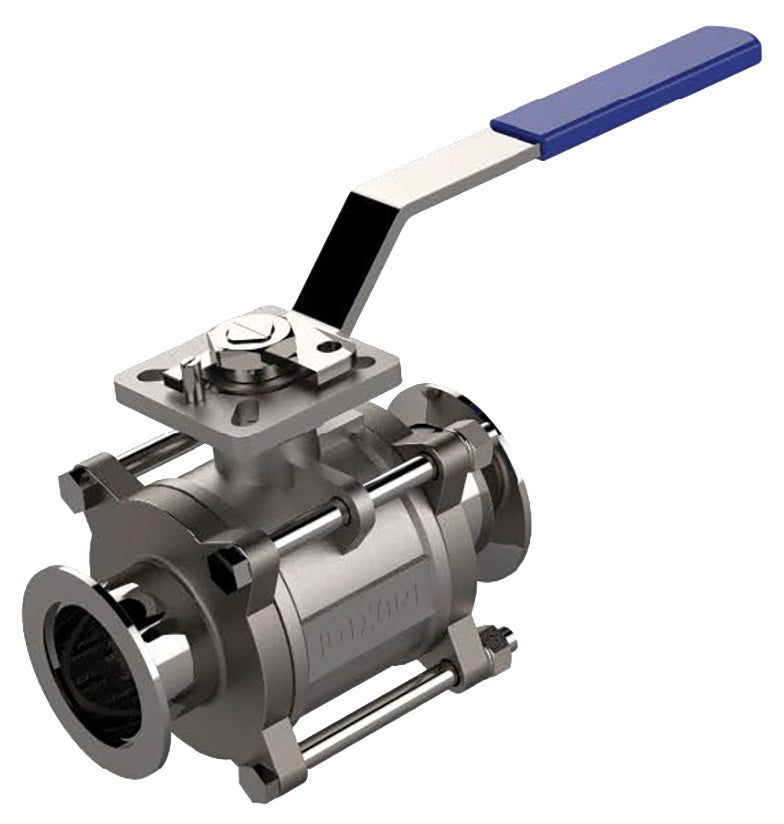

BV2CV-100VV-A Dixon Valve KF Two-Way Encapsulated Ball Valve for D-TORR Vacuum Fitting - Flange Size: KF25 - Stainless Steel

BV2CV-100VV-A Dixon Valve KF Two-Way Encapsulated Ball Valve for D-TORR Vacuum Fitting - Flange Size: KF25 - Stainless Steel

Save $123.47 Save $123.47
$308.67
$308.67 - $308.67
$308.67
$185.20
$185.20 - $185.20
$185.20

Dixon Sanitary Fittings D-TORR Series Vacuum Fittings: KF Two-Way Encapsulated Ball Valve - Stainless Steel

Size: 1/2" - 2"
Specifications for Variant SKU: BV2CV-100VV-A Dixon
Shape (Orientation): Straight
Material(s): Stainless Steel
Features:
  • Live-loaded stem packing
  • Blowout-proof stem
  • Full port design
  • ISO5211 high mounting pad
  • Encapsulated seals
  • Lockable handle
  • Can be actuated
  • 100% tested before shipping
Materials:
  • Body, ends, and ball: CF8M stainless steel
Specifications:
  • Maximum pressure rating: 1000 PSI WOG
  • Helium leakage testing to 1x10-8 Torr
Part Number Flange Size Dimensions
A B C D (mm) E (mm) F (mm)
BV2CV-050VV-A KF10 4.9" 1.5" 4.3" 9.00mm F03 F04
BV2CV-075VV-A KF16 4.9" 1.8" 4.7" 9.00mm F03 F04
BV2CV-100VV-A KF25 5.4" 2.1" 4.9" 11.00mm F04 F05
BV2CV-150VV-A KF40 9.3" 2.7" 5.6" 14.00mm F05 F07
BV2CV-200VV-A KF50 9.3" 3.1" 6.4" 14.00mm F05 F07
Dixon Valve & Coupling

Dixon Valve & Coupling

Dixon, founded in 1916, is a premier manufacturer and supplier of hose couplings, valves, dry disconnects, swivels, and other fluid transfer and control products. Our global reach includes a wide range of products for numerous industries including petroleum exploration, refining, transportation, chemical processing, food and beverage, steel, fire protection, construction, mining, and manufacturing.
