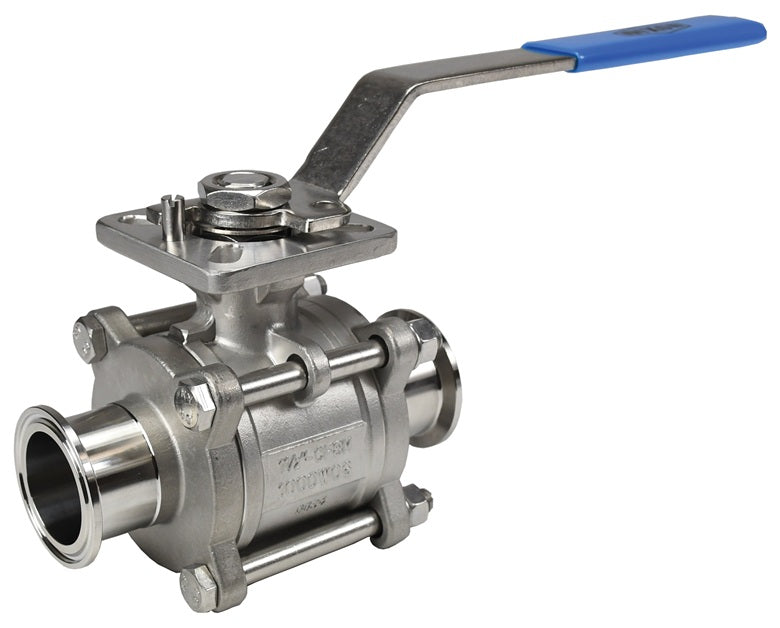

BV2CV-200CC-A Dixon 2" 316 Stainless Steel Sanitary 2-Way 3 Piece Encapsulated Ball Valve

BV2CV-200CC-A Dixon Valve 2" 316 Stainless Steel Sanitary 2-Way 3 Piece Encapsulated Ball Valve

Save $37.64 Save $37.64
$349.99
$349.99 - $349.99
$349.99
$312.35
$312.35 - $312.35
$312.35

Dixon Sanitary Valves - 2-Way 3 Piece Encapsulated Ball Valves - 316 Stainless Steel
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: BV2CV-200CC-A Dixon
Shape (Orientation): Straight
Ends Configuration: 2in Sanitary Clamp End, 2in Sanitary Clamp End, Some Ends Match
Material(s): 316 Stainless Steel
Seal Material(s): PTFE
Features:
  • 1/2" - 2" rated at 1,000 PSI WOG; 2-1/2" - 4" rated at 800 PSI WOG.
  • Balanced encapsulated construction minimizes cold flow.
  • Live-loaded stem packing.
  • Precision stainless steel balls reduce torque and friction.
  • Losses while extending seat life.
  • Integral ISO 5211 mounting pad.
  • ID polish is Ra 32 minimum.
  • Lockable handle can prevent accidental actuation.
  • Standard internal entry blow out proof stem design.
  • Full port design matches ball and seat ports to tube ID for lower pressure drop and less turbulent flow.
  • Compact design for areas with tight space restrictions.
  • Fully encapsulated construction produces bubble tight seal.
  • Identification tagging available.
  • Virgin PTFE seats.
  • Repair kits available.
Dimensions:
Part Number Size Dimensions Weight (Lbs.)
A B C D E
BV2CV-050CC-A 1/2" 4.9" 1.5" 4.3" 3.0" 1.9" 2.4400
BV2CV-075CC-A 3/4" 4.9" 1.8" 4.7" 3.3" 2.2" 2.9000
BV2CV-100CC-A 1" 5.6" 2.1" 4.9" 3.6" 2.4" 3.8000
BV2CV-150CC-A 1-1/2" 9.5" 2.7" 5.6" 4.4" 3.1" 7.0400
BV2CV-200CC-A 2" 9.5" 3.1" 6.4" 4.8" 3.7" 10.7600
BV2CV-250CC-A 2-1/2" 18.0" 3.8" 7.8" 5.2" 4.8" 20.9900
BV2CV-300CC-A 3" 18.0" 4.2" 9.0" 5.7" 5.4" 32.3000
BV2CV-400CC-A 4" 18.0" 5.3" 9.5" 6.8" 8.8" 49.0000

Dixon Sanitary's commitment to excellence and continuous research and development for improving product quality may warrant periodic changes in design and specification. Dixon reserves the right to modify product design without prior notification and without incurring any liability to provide these modifications to products previously purchased.
