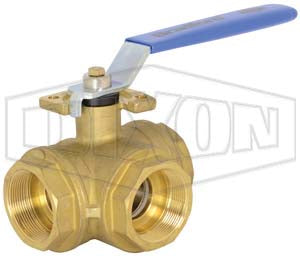

BV3BVLR-2501-A Dixon Valve 2-1/2" Three-Way "L" Industrial Brass Ball Valve - Female NPT - Seat: PTFE

BV3BVLR-2501-A Dixon Valve 2-1/2" Three-Way "L" Industrial Brass Ball Valve - Female NPT - Seat: PTFE

Save $32.10 Save $32.10
$1,283.67
$1,283.67 - $1,283.67
$1,283.67
$1,251.57
$1,251.57 - $1,251.57
$1,251.57

Dixon Sanitary Valves
Three-Way "L" Industrial Brass Ball Valve - Female NPT

Seat: PTFE
Specifications for Variant SKU: BV3BVLR-2501-A Dixon
Shape (Orientation): Tee
Ends Configuration: 2-1/2in Female NPT, 2-1/2in Female NPT, 2-1/2in Female NPT, Some Ends Match
Material(s): Brass
Seal Material(s): PTFE
Features:
  • Reduced port
  • Blow-out proof stem
  • Female NPT ends
  • Maximum Operating Pressure: 400 PSI WOG
  • Maximum Temperature: 300°F (149°C)
Construction:
  • PTFE seats with O-ring backing
  • Double O-ring stem packing
  • ISO 5211 mounting pad
Part Number Size
BV3BVLR-0251-A 1/4"
BV3BVLR-0381-A 3/8"
BV3BVLR-0501-A 1/2"
BV3BVLR-0751-A 3/4"
BV3BVLR-1001-A 1"
BV3BVLR-1251-A 1-1/4"
BV3BVLR-1501-A 1-1/2"
BV3BVLR-2001-A 2"
BV3BVLR-2501-A 2-1/2"
BV3BVLR-3001-A 3"
