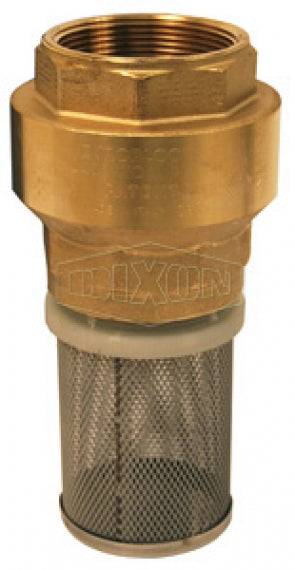

BVFS40 by Dixon Valve | Spring-Loaded Check Valve with Strainer | 4" Female NPT | Brass & Stainless Steel

BVFS40 by Dixon Valve | Spring-Loaded Check Valve with Strainer | 4" Female NPT | Brass & Stainless Steel

Save $301.87 Save $301.87
$754.67
$754.67 - $754.67
$754.67
$452.80
$452.80 - $452.80
$452.80

Dixon Valve & Coupling
Spring-Loaded Check Valve with Strainer
Specifications for Variant SKU: BVFS40 Dixon
Features:
  • Soft seat for bubble tight shutoff, spring loaded for fast seating action.
  • Flow profile designed to minimize head loss.
Materials:
  • Brass with NBR seat and stainless steel strainer.
Specifications:
  • Temperature range: 10°F to 210°F (-10°C to 100°C)
  • Cracking pressure: 0.50 PSI
  • Pressure rating: 1-1/2" to 2" 400 PSI WOG, 3"-4" 175 PSI WOG
Part Number Female NPT
BVFS20 1-1/2"
BVFS25 2"
BVFS35 3"
BVFS40 4"
