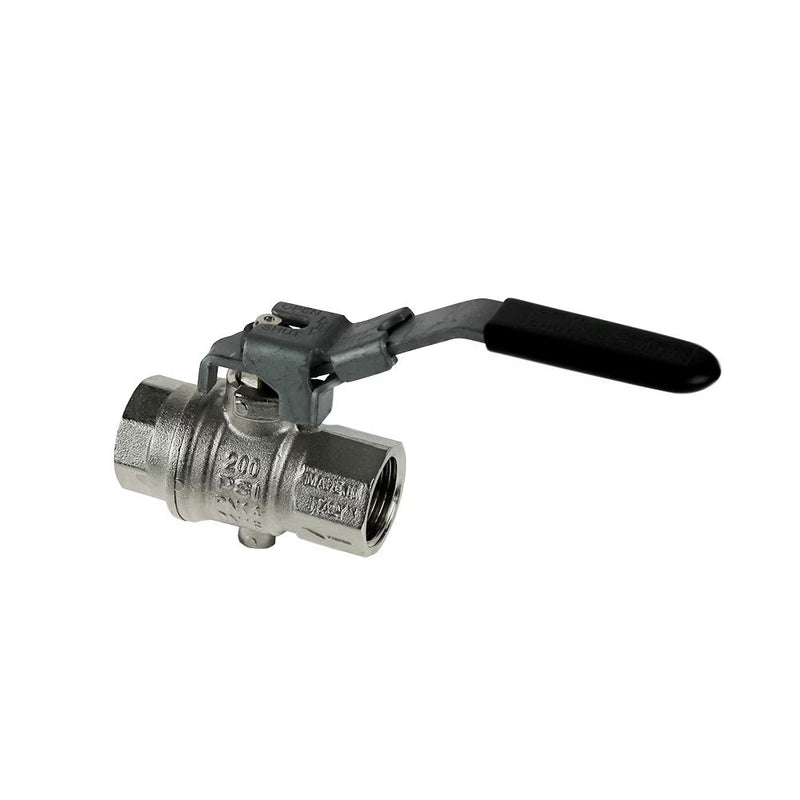

BVG4-3/4LOCK by Parker | In-Line Lockable Ball Valve | 3/4" Female BSPP Thread | 31 mm Hex | Straight | Nickel-Plated Brass

Save $6.04

$73.65

$73.65 - $73.65

$73.65

$67.61

$67.61 - $67.61

$67.61

by Parker Hannifin
Standard Series:BVG4-LOCK 2/2 In-Line Lockable Ball Valve, Female BSPP Thread

Quantity

Specifications for Variant SKU: BVG4-3/4LOCK Parker
Series:	BVG4-LOCK Series
Shape (Orientation):	Straight
Material(s):	Nickel-Plated Brass
Seal Material(s):	PTFE, Rubber
Special Properties:	Silicone Free, Corrosion Resistance

Technical Characteristics:	Model: Standard and Lockable Series Compatible Fluids: Compressed air Working Pressure: 0 to 40 bar up to 2" 0 to 30 bar up to 2" expected BVG4P-LOCK and BVG4-LOCK: 0 to 14 bar Working Temperature: -20°C to +170°C excepted BVG3P-LOCK: -10°C to +100°C
Advantages:	Long or butterfly handle Full fluid flow A lockable version for safety in use Corrosion resistance thanks to chemical nickel plating
Regulations:	PED RoHS REACH
Component Materials:	Locking System: Treated Steel Stem seal: FPM o-rings Seat seals: PTFE Long Lever: Geomet plated steel Compact Series Lever: Technical Polymer Butterfly Lever: Aluminum Locking nut and Locking screw: Zinc plated steel Stem: Nickel-Plated Brass Body: Nickel plated or chromium-plated shot blasted brass Ball: Chromium-plated brass


Part Number	Diameter Nominal (DN)	C	E	F	H	L	M	Kg
BVG4-1/4LOCK	8 mm	1/4"	9 mm	17 mm	46 mm	39 mm	96 mm	.150 Kg
BVG4-3/8LOCK	10 mm	3/8"	9 mm	20 mm	46 mm	39 mm	96 mm	.150 Kg
BVG4-1/2LOCK	15 mm	1/2"	11 mm	25 mm	51 mm	50 mm	96 mm	.255 Kg
BVG4-3/4LOCK	19 mm	3/4"	12 mm	31 mm	59 mm	54 mm	117 mm	.390 Kg
BVG4-1LOCK	25 mm	1"	14 mm	38 mm	63 mm	67 mm	117 mm	.590 Kg

Double stem seal in FPM
Working temperature -40°C to +170°C

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
