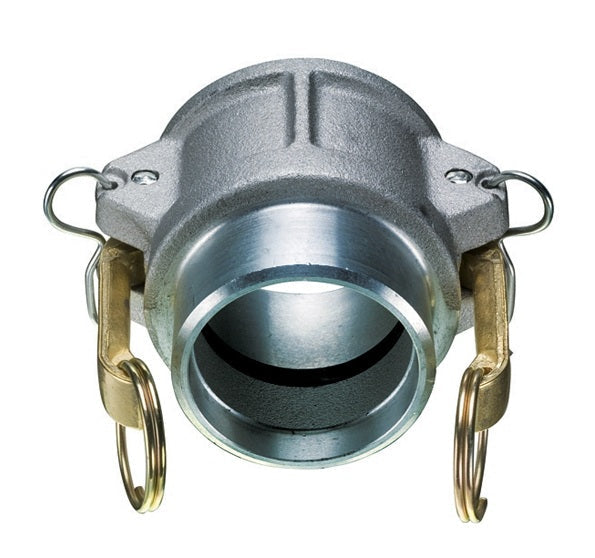

BW-ALB400 by Kuriyama | BW-ALB Series | Part B | Cam & Groove Adapter | 4" Coupler x 4" Butt Weld End | Aluminum

BW-ALB400 by Kuriyama | BW-ALB Series | Part B | Cam & Groove Adapter | 4" Coupler x 4" Butt Weld End | Aluminum

Save $14.84 Save $14.84
$58.25
$58.25 - $58.25
$58.25
$43.41
$43.41 - $43.41
$43.41

Kuriyama of America Inc.
Cam & Groove (Camlock) Adapter | BW-ALB Series | Part B | Coupler x Butt Weld End | Aluminum

Kuriyama Camlock Couplings are intended for use in many industrial applications.

High quality design made to withstand rigorous applications found in industrial markets.
Specifications for Variant SKU: BW-ALB400 Kuriyama
Series: BW-ALB Series
Shape (Orientation): Straight
Cam Type: Type B
Ends Configuration: 4in Female Cam & Groove, 4in Weld End
Material(s): Aluminum
Seal Material(s): Buna-N/Nitrile Rubber

What are the Applications?

  • Kuriyama Camlock Couplings are intended for use in many industrial applications.
  • Ideal for agriculture, industrial, petroleum, construction, and irrigation.

What are the Features?

  • High quality design made to withstand rigorous applications found in industrial markets.
  • Aluminum alloy specially designed for high tensile strength and impact resistance.
  • Supplied with forged brass handles which results in less wear on connecting parts.
  • BW items are dual purpose which allows them be used as butt weld fittings to schedule 40 pipe and socket weld fittings for nominal OD tubing.

What are the Materials?

  • ASTM aluminum alloy.
  • Complies with Mil-Spec A-A-59326 for interchangeability in relevant sizes.
  • Forged brass handles.
  • Zinc plated carbon steel handle pins, pull rings and safety clips.
  • Buna-N gasket included.
Part Number Size
(in)		 PSI Rating
at 70°F		 ASTM Specification Weight
Each
(lbs)
BW-ALB150 1-1/2" 250 PSI B26 Grade 713 0.76 lbs
BW-ALB200 2" 250 PSI B26 Grade 713 0.92 lbs
BW-ALB250 2-1/2" 150 PSI B26 Grade 713 1.09 lbs
BW-ALB300 3" 150 PSI B26 Grade 713 1.64 lbs
BW-ALB400 4" 150 PSI B26 Grade 713 2.51 lbs
BW-ALB500 5" 75 PSI B26 Grade 713 3.43 lbs
BW-ALB600 6" 75 PSI B26 Grade 713 5.08 lbs
BW-ALB800 8" 50 PSI B26 Grade 713 8.15 lbs

Kuriyama

Located in Schaumburg, Illinois, Kuriyama of America has been eminently successful in developing and marketing a complete line of thermoplastic hose and accessories. Their expansive product line consist of thermoplastic, rubber and metal hose products, along with accessories including couplings and fittings.
