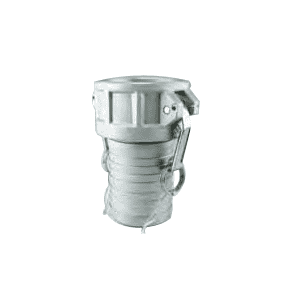

C100S by Jason Industrial | 1" Cam and Groove | Part C | Female Coupler X Hose Shank | 304 Stainless Steel

C100S by Jason Industrial | 1" Cam and Groove | Part C | Female Coupler X Hose Shank | 304 Stainless Steel

Save $8.08 Save $8.08
$17.44
$17.44 - $17.44
$17.44
$9.36
$9.36 - $9.36
$9.36

Jason Industrial Inc. Couplings & Accessories - Cam & Groove - Part C - Female Coupler x Hose Shank - 304 Stainless Steel
Specifications for Variant SKU: C100S Jason
Shape (Orientation): Straight
Cam Type: Type C
Ends Configuration: 1in Female Cam & Groove, 1in Hose Barb
Material(s): 304 Stainless Steel, 304 Stainless Steel
Seal Material(s): Buna-N/Nitrile Rubber
Applications:
  • Air, Chemical, Food, Material Handling, Mining, Petroleum (including Fracking), Steam, Water
Features:
  • Female end fits male adapter or Dust Plug.
  • Shank fits into hose ID.
  • Bowl has recess for washer replacement.
  • Sizes 3/4", 1", 1-1/4", 1-1/2", 2", 2-1/2", 3", 4" and 6" are manufactured to comply with Mil Spec A-A-59326A. They will interchange with any coupling manufactured to the same standard.
  • Size 5" complies to an ASTM spec. It will interchange to any other coupling manufactured to the same spec.
  • The 1/2" size is not specified to any Mil spec.
  • With the exception of the 1/2" size, all other sizes are supplied with safety pins, which will prevent disconnection during use.
  • Chemical composition of the alloy is analyzed on every melt.
  • Especialy capable for chemical and food applications.
Material Specs:
  • Coupling body material meets ASTM A666 304 stainless steel specifications.
  • 304 Type stainless steel handles, safety pins and rings.
  • Gaskets are nitrile.
Safety Warnings:
  • Please do not mix Jason Industrial couplings with other products.
Part Number Size Max. Working Pressure* PSI
C050S 1/2" 150 PSI
C075S 3/4" 250 PSI
C100S 1" 250 PSI
C125S 1-1/4" 250 PSI
C150S 1-1/2" 250 PSI
C200S 2" 250 PSI
C250S 2-1/2" 150 PSI
C300S 3" 125 PSI
C400S 4" 100 PSI
C600S 6" 75 PSI

* Metal coupling pressures are based on ambient temperature (+70 deg. F or +21 deg. C) with standard NBR gasket. Jason Industrial Inc. disclaims any liability for use of their products in applications other than which they are designed.
