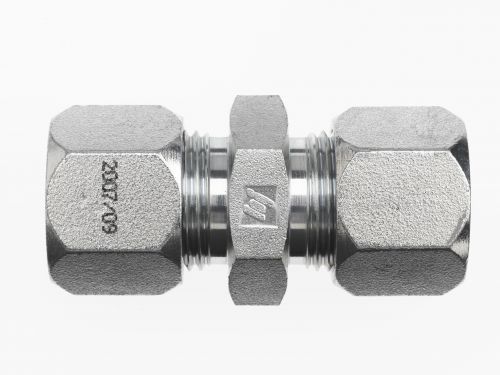

C2403-LH-08-08 by Brennan Inc. | -08 Bite Type x -08 Bite Type Tube Union | Large Hex | Straight | Steel

C2403-LH-08-08 by Brennan Inc. | -08 Bite Type x -08 Bite Type Tube Union | Large Hex | Straight | Steel

Save $11.06 Save $11.06
$27.65
$27.65 - $27.65
$27.65
$16.59
$16.59 - $16.59
$16.59

Brennan Inc.
Flareless Bite Type: C2403-LH - Bite Type x Bite Type Tube Union Straight (Large Hex)
Specifications for Variant SKU: C2403-LH-08-08 Brennan
Shape (Orientation): Straight
Ends Configuration: 1/2in Tube Compression , 1/2in Tube Compression, Some Ends Match
Material(s): Steel
Special Properties: Large Hex
Part Number Material Tube O.D. B1Thread B2Thread B1Drill B2Drill LLength K1Depth K2Depth CHex
C2403-LH-04-04 Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.203" 1.180" 0.234" 0.234" 0.688"
C2403-LH-06-06 Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 1.240" 0.250" 0.250" 0.812"
C2403-LH-08-08 Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.422" 1.420" 0.305" 0.305" 1.000"
C2403-LH-10-10 Steel 5/8" 7/8-14" 7/8-14" 0.500" 0.500" 1.610" 0.350" 0.350" 1.125"
C2403-LH-12-12 Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 1.810" 0.350" 0.350" 1.375"

C2403-LH-04-04-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.203" 1.180" 0.234" 0.234" 0.688"
C2403-LH-06-04-SS Stainless Steel 3/8" 9/16-18" 7/16-20" 0.281" 0.203" 1.220" 0.250" 0.234" 0.812"
C2403-LH-06-06-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 1.240" 0.250" 0.250" 0.812"
C2403-LH-08-06-SS Stainless Steel 1/2" 3/4-16" 9/16-18" 0.422" 0.281" 1.330" 0.305" 0.250" 1.000"
C2403-LH-08-08-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.422" 1.422" 0.305" 0.305" 1.000"
C2403-LH-12-12-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 1.810" 0.350" 0.350" 1.375"
C2403-LH-16-16-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 0.875" 0.875" 1.810" 0.415" 0.415" 1.625"
