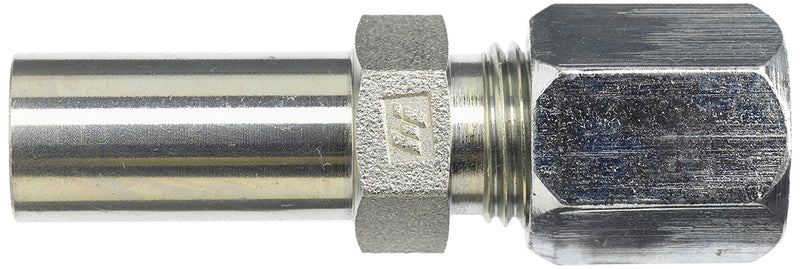

C2406-10-04 by Brennan Inc. | -10 Tube x -04 Bite Type | Straight | Reducer | Steel

C2406-10-04 by Brennan Inc. | -10 Tube x -04 Bite Type | Straight | Reducer | Steel

$3.57 - $3.57
$3.57
$4.53
$4.53 - $4.53
$4.53

Brennan Inc.
Flareless Bite Type: C2406 - Tube x Bite Type Straight Reducer
Specifications for Variant SKU: C2406-10-04 Brennan
Shape (Orientation): Straight
Ends Configuration: 5/8in Tube Compression , 1/4in Tube Compression, Some Ends Match
Material(s): Steel
Part Number Material A1Tube O.D. A1Tube B2Tube B2Thread A1Drill B2Drill LLength KDepth CHex
C2406-06-04 Steel 3/8" 0.375" 1/4" 7/16-20" 0.250" 0.203" 1.610" 0.234" 0.500"
C2406-08-04 Steel 1/2" 0.500" 1/4" 7/16-20" 0.375" 0.203" 1.730" 0.234" 0.562"
C2406-08-06 Steel 1/2" 0.500" 3/8" 9/16-18" 0.375" 0.281" 1.770" 0.250" 0.625"
C2406-10-04 Steel - - - - - - - - -
C2406-12-06 Steel 3/4" 0.750" 3/8" 9/16-18" 0.625" 0.281" 1.930" 0.250" 0.812"
C2406-12-08 Steel 3/4" 0.750" 1/2" 3/4-16" 0.625" 0.422" 2.030" 0.305" 0.813"
C2406-16-12 Steel 1" 1.000" 3/4" 1-1/16-12" 0.844" 0.656" 2.240" 0.350" 1.125"
C2406-20-16 Steel 1-1/4" 1.250" 1" 1-5/16-12" 1.031" 0.875" 2.280" 0.415" 1.375"

C2406-08-04-SS Stainless Steel 1/2" 0.500" 1/4" 7/16-20" 0.375" 0.203" 1.730" 0.234" 0.562"
C2406-08-06-SS Stainless Steel 1/2" 0.500" 3/8" 9/16-18" 0.375" 0.281" 1.770" 0.250" 0.625"
C2406-10-08-SS Stainless Steel 5/8" 0.625" 1/2" 3/4-16" 0.500" 0.422" 1.960" 0.305" 0.812"
C2406-12-08-SS Stainless Steel 3/4" 0.750" 1/2" 3/4-16" 0.625" 0.422" 2.030" 0.305" 0.813"
C2406-16-08-SS Stainless Steel 1" 1.000" 1/2" 3/4-16" 0.844" 0.422" 2.050" 0.305" 1.062"
C2406-16-12-SS Stainless Steel 1" 1.000" 3/4" 1-1/16-12" 0.844" 0.656" 2.240" 0.350" 1.125"
