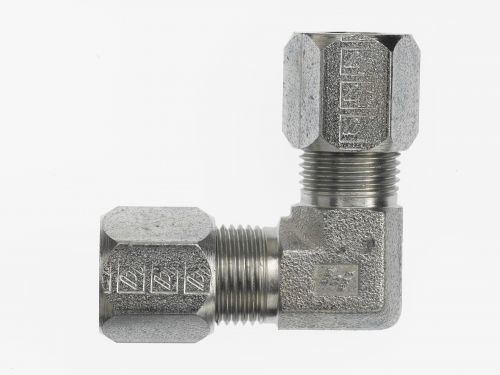

C2500-12-12-SS by Brennan Inc. | -12 Bite Type x -12 Bite Type | 90° Elbow | Stainless Steel

C2500-12-12-SS by Brennan Inc. | -12 Bite Type x -12 Bite Type | 90° Elbow | Stainless Steel

Save $86.61 Save $86.61
$216.53
$216.53 - $216.53
$216.53
$129.92
$129.92 - $129.92
$129.92

Brennan Inc.
Flareless Bite Type: C2500 - Bite Type x Bite Type 90° Elbow
Specifications for Variant SKU: C2500-12-12-SS Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Tube Compression , 3/4in Tube Compression, Some Ends Match
Material(s): Stainless Steel
Part Number Material Tube O.D. B1Thread B2Thread B1Drill B2Drill M1Length M2Length K1Depth K2Depth YFlats
C2500-04-04-FG Forged Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.203" 0.890" 0.890" 0.234" 0.234" 0.438"
C2500-05-05-FG Forged Steel 5/16" 1/2-20" 1/2-20" 0.234" 0.234" 0.950" 0.950" 0.250" 0.250" 0.562"
C2500-06-06-FG Forged Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 1.050" 1.050" 0.250" 0.250" 0.562"
C2500-08-08-FG Forged Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.422" 1.250" 1.250" 0.305" 0.305" 0.750"
C2500-10-10-FG Forged Steel 5/8" 7/8-14" 7/8-14" 0.500" 0.500" 1.420" 1.420" 0.350" 0.350" 0.875"
C2500-12-12-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 1.580" 1.580" 0.350" 0.350" 1.062"
C2500-14-14-FG Forged Steel 7/8" 1-3/16-12" 1-3/16-12" 0.719" 0.719" 1.660" 1.660" 0.350" 0.350" 1.312"
C2500-16-16-FG Forged Steel 1" 1-5/16-12" 1-5/16-12" 0.875" 0.875" 1.730" 1.730" 0.415" 0.415" 1.312"
C2500-20-20-FG Forged Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.093" 1.093" 1.890" 1.890" 0.415" 0.415" 1.625"
C2500-32-32-FG Forged Steel - - - - - - - - - -

C2500-04-04-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.203" 0.890" 0.890" 0.234" 0.234" 0.438"
C2500-06-06-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 1.050" 1.050" 0.250" 0.250" 0.562"
C2500-08-08-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.422" 1.250" 1.250" 0.305" 0.305" 0.750"
C2500-10-10-SS Stainless Steel 5/8" 7/8-14" 7/8-14" 0.500" 0.500" 1.420" 1.420" 0.350" 0.350" 0.875"
C2500-12-12-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 1.580" 1.580" 0.350" 0.350" 1.062"
C2500-16-16-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 0.875" 0.875" 1.730" 1.730" 0.415" 0.415" 1.312"
C2500-20-20-SS Stainless Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1.093" 1.093" 1.890" 1.890" 0.415" 0.415" 1.625"
C2500-24-24-SS Stainless Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1.344" 1.344" 2.020" 2.020" 0.485" 0.485" 1.875"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
