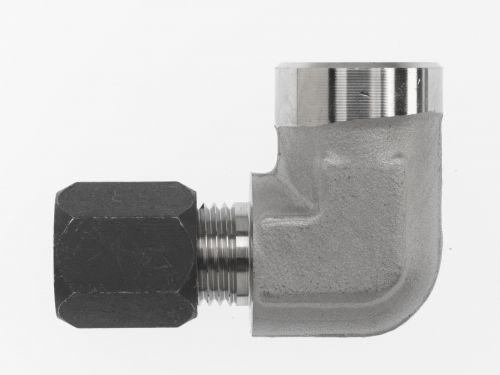

C2502-12-12-FG by Brennan Inc. | -12 Bite Type x -12 Female Pipe | 90° Elbow | Forged Steel

C2502-12-12-FG by Brennan Inc. | -12 Bite Type x -12 Female Pipe | 90° Elbow | Forged Steel

$20.35 - $20.35
$20.35
$25.83
$25.83 - $25.83
$25.83

Brennan Inc.
Flareless Bite Type: C2502 Bite Type x Female Pipe 90° Elbow
Specifications for Variant SKU: C2502-12-12-FG Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 3/4in Tube Compression , 3/4in Female NPT
Material(s): Steel
Part Number Material Tube O.D. B1Thread A2NPTF B1Drill M Length NLength KDepth YFlats
C2502-04-02-FG Forged Steel 1/4" 7/16-20" 1/8-27" 0.203" 0.890" 0.660" 0.234" 0.562"
C2502-04-04-FG Forged Steel 1/4" 7/16-20" 1/4-18" 0.203" 1.030" 0.880" 0.234" 0.750"
C2502-05-02-FG Forged Steel 5/16" 1/2-20" 1/8-27" 0.234" 0.950" 0.660" 0.250" 0.562"
C2502-06-04-FG Forged Steel 3/8" 9/16-18" 1/4-18" 0.281" 1.050" 0.880" 0.250" 0.750"
C2502-06-06-FG Forged Steel 3/8" 9/16-18" 3/8-18" 0.281" 1.120" 1.020" 0.250" 0.875"
C2502-08-04-FG Forged Steel 1/2" 3/4-16" 1/4-18" 0.422" 1.230" 1.020" 0.305" 0.750"
C2502-08-06-FG Forged Steel 1/2" 3/4-16" 3/8-18" 0.422" 1.230" 1.020" 0.305" 0.875"
C2502-08-08-FG Forged Steel 1/2" 3/4-16" 1/2-14" 0.422" 1.350" 1.230" 0.305" 1.062"
C2502-10-08-FG Forged Steel 5/8" 7/8-14" 1/2-14" 0.500" 1.420" 1.230" 0.350" 1.062"
C2502-12-12-FG Forged Steel 3/4" 1-1/16-12" 3/4-14" 0.656" 1.580" 1.360" 0.350" 1.312"
C2502-16-16-FG Forged Steel 1" 1-5/16-12" 1-11-1/2" 0.875" 1.730" 1.620" 0.415" 1.625"
C2502-20-20-FG Forged Steel 1-1/4" 1-5/8-12" 1-1/4-11-1/2" 1.093" 2.080" 1.700" 0.415" 1.875"

C2502-04-02-SS Stainless Steel 1/4" 7/16-20" 1/8-27" 0.203" 0.890" 0.660" 0.234" 0.562"
C2502-04-04-SS Stainless Steel 1/4" 7/16-20" 1/4-18" 0.203" 1.030" 0.880" 0.234" 0.750"
C2502-06-04-SS Stainless Steel 3/8" 9/16-18" 1/4-18" 0.281" 1.050" 0.880" 0.250" 0.750"
C2502-06-06-SS Stainless Steel 3/8" 9/16-18" 3/8-18" 0.281" 1.120" 1.020" 0.250" 0.875"
C2502-08-04-SS Stainless Steel 1/2" 3/4-16" 1/4-18" 0.422" 1.230" 1.020" 0.305" 0.750"
C2502-08-06-SS Stainless Steel 1/2" 3/4-16" 3/8-18" 0.422" 1.230" 1.020" 0.305" 0.875"
C2502-08-08-SS Stainless Steel 1/2" 3/4-16" 1/2-14" 0.422" 1.350" 1.230" 0.305" 1.062"
C2502-10-08-SS Stainless Steel 5/8" 7/8-14" 1/2-14" 0.500" 1.420" 1.230" 0.350" 1.062"
C2502-12-12-SS Stainless Steel 3/4" 1-1/16-12" 3/4-14" 0.656" 1.580" 1.360" 0.350" 1.312"
C2502-16-16-SS Stainless Steel 1" 1-5/16-12" 1-11-1/2" 0.875" 1.730" 1.620" 0.415" 1.625"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
