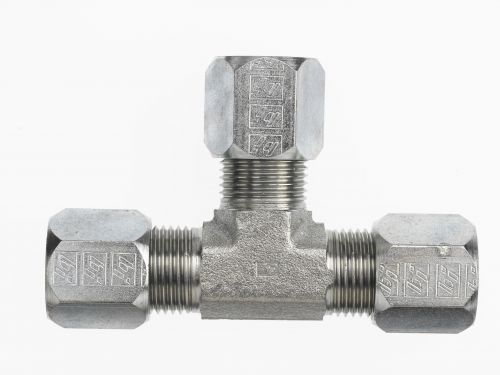

C2603-10-10-10-FG by Brennan Inc. | -10 Bite Type x -10 Bite Type x -10 Bite Type | Tee | Forged Steel

C2603-10-10-10-FG by Brennan Inc. | -10 Bite Type x -10 Bite Type x -10 Bite Type | Tee | Forged Steel

Save $20.61 Save $20.61
$51.53
$51.53 - $51.53
$51.53
$30.92
$30.92 - $30.92
$30.92

Brennan Inc.
Flareless Bite Type: C2603 - Bite Type x Bite Type x Bite Type Tee
Specifications for Variant SKU: C2603-10-10-10-FG Brennan
Shape (Orientation): Tee
Ends Configuration: 5/8in Tube Compression , 5/8in Tube Compression , 5/8in Tube Compression, Some Ends Match
Material(s): Steel
Part Number Material Tube O.D. B1 Thread B2 Thread B3 Thread B1 Drill B2 Drill B3 Drill M1 Length M2 Length M3 Length K1 Depth K2 Depth K3 Depth Y Flats
C2603-02-02-02-FG Forged Steel 1/8" 5/16-24" 5/16-24" 5/16-24" 0.093" 0.093" 0.093" 0.770" 0.770" 0.770" 0.188" 0.188" 0.188" 0.438"
C2603-03-03-03-FG Forged Steel 3/16" 3/8-24" 3/8-24" 3/8-24" 0.125" 0.125" 0.125" 0.830" 0.830" 0.830" 0.234" 0.234" 0.234" 0.438"
C2603-04-04-04-FG Forged Steel 1/4" 7/16-20" 7/16-20" 7/16-20" 0.203" 0.203" 0.203" 0.890" 0.890" 0.890" 0.234" 0.234" 0.234" 0.438"
C2603-05-05-05-FG Forged Steel 5/16" 1/2-20" 1/2-20" 1/2-20" 0.234" 0.234" 0.234" 0.950" 0.950" 0.950" 0.250" 0.250" 0.250" 0.562"
C2603-06-06-06-FG Forged Steel 3/8" 9/16-18" 9/16-18" 9/16-18" 0.281" 0.281" 0.281" 1.050" 1.050" 1.050" 0.250" 0.250" 0.250" 0.562"
C2603-08-08-08-FG Forged Steel 1/2" 3/4-16" 3/4-16" 3/4-16" 0.422" 0.422" 0.422" 1.250" 1.250" 1.250" 0.305" 0.305" 0.305" 0.750"
C2603-10-10-10-FG Forged Steel 5/8" 7/8-14" 7/8-14" 7/8-14" 0.500" 0.500" 0.500" 1.420" 1.420" 1.420" 0.350" 0.350" 0.350" 0.875"
C2603-12-12-12-FG Forged Steel 3/4" 1-1/16-12" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 0.656" 1.580" 1.580" 1.580" 0.350" 0.350" 0.350" 1.062"
C2603-14-14-14-FG Forged Steel 7/8" 1-3/16-12" 1-3/16-12" 1-3/16-12" 0.719" 0.719" 0.719" 1.660" 1.660" 1.660" 0.350" 0.350" 0.350" 1.312"
C2603-16-16-16-FG Forged Steel 1" 1-5/16-12" 1-5/16-12" 1-5/16-12" 0.875" 0.875" 0.875" 1.730" 1.730" 1.730" 0.415" 0.415" 0.415" 1.312"
C2603-20-20-20-FG Forged Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1-5/8-12" 1.093" 1.093" 1.093" 1.890" 1.890" 1.890" 0.415" 0.415" 0.415" 1.625"
C2603-24-24-24-FG Forged Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1-7/8-12" 1.344" 1.344" 1.344" 2.020" 2.020" 2.020" 0.485" 0.485" 0.485" 1.875"
C2603-32-32-32-FG Forged Steel 2" 2-1/2-12" 2-1/2-12" 2-1/2-12" 1.813" 1.813" 1.813" 2.450" 2.450" 2.450" 0.485" 0.485" 0.485" 2.500"

C2603-02-02-02-SS Stainless Steel 1/8" 5/16-24" 5/16-24" 5/16-24" 0.093" 0.093" 0.093" 0.770" 0.770" 0.770" 0.188" 0.188" 0.188" 0.438"
C2603-04-04-04-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 7/16-20" 0.203" 0.203" 0.203" 0.890" 0.890" 0.890" 0.234" 0.234" 0.234" 0.438"
C2603-05-05-05-SS Stainless Steel 5/16" 1/2-20" 1/2-20" 1/2-20" 0.234" 0.234" 0.234" 0.950" 0.950" 0.950" 0.250" 0.250" 0.250" 0.562"
C2603-06-06-06-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 9/16-18" 0.281" 0.281" 0.281" 1.050" 1.050" 1.050" 0.250" 0.250" 0.250" 0.562"
C2603-08-08-08-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 3/4-16" 0.422" 0.422" 0.422" 1.250" 1.250" 1.250" 0.305" 0.305" 0.305" 0.750"
C2603-10-10-10-SS Stainless Steel 5/8" 7/8-14" 7/8-14" 7/8-14" 0.500" 0.500" 0.500" 1.420" 1.420" 1.420" 0.350" 0.350" 0.350" 0.875"
C2603-12-12-12-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 0.656" 1.580" 1.580" 1.580" 0.350" 0.350" 0.350" 1.062"
C2603-16-16-16-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 1-5/16-12" 0.875" 0.875" 0.875" 1.730" 1.730" 1.730" 0.415" 0.415" 0.415" 1.312"
C2603-20-20-20-SS Stainless Steel 1-1/4" 1-5/8-12" 1-5/8-12" 1-5/8-12" 1.093" 1.093" 1.093" 1.890" 1.890" 1.890" 0.415" 0.415" 0.415" 1.625"
Brennan

Brennan

Brennan Industries, founded in 1953, distinguishes itself with a commitment to quality in hydraulic and pneumatic fittings. With over 120,000 styles and sizes, Brennan serves a global market through extensive distribution networks. As a privately held company, Brennan's principals actively oversee operations, ensuring top-tier customer service and responsiveness. Their products meet or exceed J.I.C./S.A.E. and international standards, supported by ISO 9001:2015, AS9100D, and NADCAP certifications. Brennan's offerings include standard and custom solutions, backed by robust engineering support. With 13 distribution centers worldwide, Brennan delivers exceptional quality, service, and competitive pricing for all hydraulic and pneumatic fitting needs.
