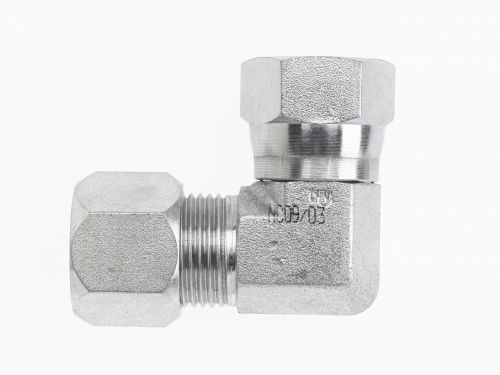

C6500-16-16-SS by Brennan Inc. | -16 Bite Type x -16 Bite Type Swivel | 90° Elbow | Stainless Steel

C6500-16-16-SS by Brennan Inc. | -16 Bite Type x -16 Bite Type Swivel | 90° Elbow | Stainless Steel

Save $133.47 Save $133.47
$333.68
$333.68 - $333.68
$333.68
$200.21
$200.21 - $200.21
$200.21

Brennan Inc.
Flareless Bite Type: C6500 - Bite Type x Bite Type Swivel 90° Elbow
Specifications for Variant SKU: C6500-16-16-SS Brennan
Shape (Orientation): 90 Degree
Ends Configuration: 1in Tube Compression , 1in Tube Compression, Some Ends Match
Material(s): Stainless Steel
Special Properties: Swivel
Part Number Material Tube O.D. B1Thread B2Thread B1Drill B2Drill KDepth MLength M5Length CHex YFlats
C6500-04-04-FG Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.203" 0.234" 0.890" 1.050" 0.562" 0.438"
C6500-06-06-FG Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 0.250" 1.050" 1.280" 0.688" 0.562"
C6500-08-08-FG Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.422" 0.305" 1.250" 1.470" 0.875" 0.750"
C6500-12-12-FG Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 0.350" 1.580" 1.770" 1.250" 1.062"
C6500-16-16-FG Steel 1" 1-5/16-12" 1-5/16-12" 0.875" 0.875" 0.415" 1.730" 1.860" 0.500" 0.312"

C6500-04-04-SS Stainless Steel 1/4" 7/16-20" 7/16-20" 0.203" 0.203" 0.234" 0.890" 1.050" 0.562" 0.438"
C6500-06-06-SS Stainless Steel 3/8" 9/16-18" 9/16-18" 0.281" 0.281" 0.250" 1.050" 1.280" 0.688" 0.562"
C6500-08-08-SS Stainless Steel 1/2" 3/4-16" 3/4-16" 0.422" 0.422" 0.305" 1.250" 1.470" 0.875" 0.750"
C6500-10-10-SS Stainless Steel 5/8" 7/8-14" 7/8-14" 0.500" 0.500" 0.350" 1.420" 1.610" 1.000" 0.875"
C6500-12-12-SS Stainless Steel 3/4" 1-1/16-12" 1-1/16-12" 0.656" 0.656" 0.350" 1.580" 1.770" 1.250" 1.062"
C6500-16-16-SS Stainless Steel 1" 1-5/16-12" 1-5/16-12" 0.875" 0.875" 0.415" 1.730" 1.860" 0.500" 0.312"
C6500-24-24-SS Stainless Steel 1-1/2" 1-7/8-12" 1-7/8-12" 1.344" 1.344" 0.485" 2.020" 2.590" 2.250" 1.875"
