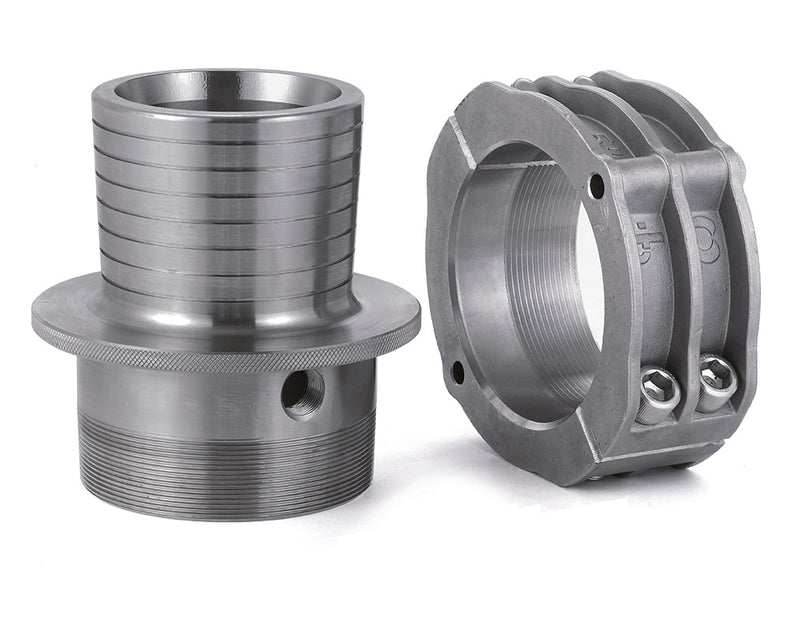

C650069 OROFLEX® WELL by Kuriyama | Conical Coupling | 3" Male NPT x Hose Barb | Without Drain Hole | 316 Stainless Steel
C650069 OROFLEX® WELL by Kuriyama | Conical Coupling | 3" Male NPT x Hose Barb | Without Drain Hole | 316 Stainless Steel
C650069 OROFLEX® WELL by Kuriyama | Conical Coupling | 3" Male NPT x Hose Barb | Without Drain Hole | 316 Stainless Steel

C650069 OROFLEX® WELL by Kuriyama | Conical Coupling | 3" Male NPT x Hose Barb | Without Drain Hole | 316 Stainless Steel

Save $124.56 Save $124.56
$771.01
$771.01 - $771.01
$771.01
$646.45
$646.45 - $646.45
$646.45

Kuriyama
OROFLEX® WELL | Conical Coupling

For use with OROFLEX® WELL OFWL™ Series Flexible Well Riser Hose.
Specifications for Variant SKU: C650069 Kuriyama
Brand: OROFLEX WELL
Shape (Orientation): Straight
Ends Configuration: 3in Male NPT, 3in Hose Barb
Material(s): 316 Stainless Steel
Applications:
  • For use with OROFLEX® WELL OFWL™ Series Flexible Well Riser Hose.
Features:

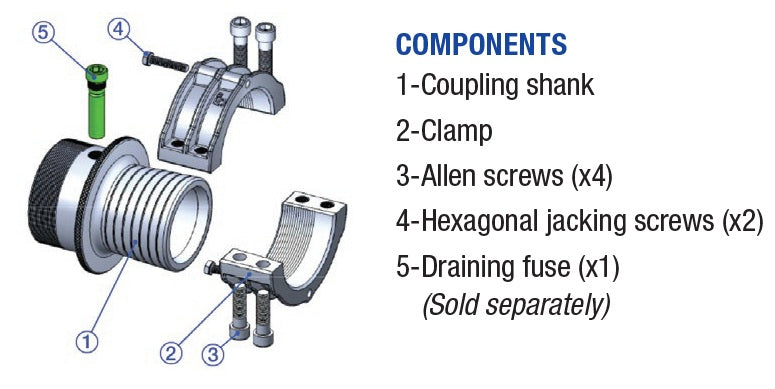

  • Includes coupling, clamp and screws.
  • Available with or without drain hole.
  • Field fittable and reusable.
Construction:
  • 316 Stainless Steel
Part Number Drain Hole Thread ID Max. Diameter Weight
in mm in mm lbs.
C655120 No Male NPT 1-1/4" 32mm 2.60" 66mm 1.83 lbs
C654899 No Male NPT 1-1/2" 40mm 2.76" 70mm 2.25 lbs
C654898* Yes Male NPT 1-1/2" 40mm 2.76" 70mm 2.25 lbs
C650089 No Male NPT 2" 51mm 3.94" 100mm 5.29 lbs
C655005* Yes Male NPT 2" 51mm 3.94" 100mm 5.29 lbs
C650069 No Male NPT 3" 76mm 5.12" 130mm 13.67 lbs
C650100* Yes Male NPT 3" 76mm 5.12" 130mm 13.67 lbs
C654827** Yes Male NPT 4" 102mm 6.50" 165mm 21.38 lbs
C654826* Yes Male NPT 4" 102mm 6.50" 165mm 21.38 lbs
C652353* Yes Male NPT 5" 127mm 7.72" 196mm 29.98 lbs
C652362** Yes Male NPT 6" 152mm 8.94" 227mm 44.31 lbs
C652349* Yes Male NPT 6" 152mm 8.94" 227mm 44.31 lbs
C655144** Yes Male NPT 8" 203mm 10.63" 270mm 105.82 lbs
C655143* Yes Male NPT 8" 203mm 10.63" 270mm 105.82 lbs

* Supplied with Fuse
** Supplied with Plug

Replacement Parts

Fuse
Part Number 		Plug
Part Number 		Torpedo (Plumb)
Part Number 		Coupling
Diameter
(in) (mm)
- - C654340 1-1/4" 32mm
C650000 - C654340 1-1/2" 40mm
C650002 - C654350 2" 52mm
C650003 - C654360 3" 76mm
C651497SS C651498SS C654370 4" 102mm
C651507SS C653051SS C654380 5" 127mm
C651507SS C653051SS C654380 6" 152mm
C652325SS C653051SS C654380 8" 203mm
