C654205 OROFLEX® WELL by Kuriyama | Centering Segment for Well Riser Hose | 3 (Large Bowl Height) | Use with 6", 8" Diameter Couplings
C654205 OROFLEX® WELL by Kuriyama | Centering Segment for Well Riser Hose | 3 (Large Bowl Height) | Use with 6", 8" Diameter Couplings
C654205 OROFLEX® WELL by Kuriyama | Centering Segment for Well Riser Hose | 3 (Large Bowl Height) | Use with 6", 8" Diameter Couplings

C654205 OROFLEX® WELL by Kuriyama | Centering Segment for Well Riser Hose | 3 (Large Bowl Height) | Use with 6", 8" Diameter Couplings

Save $14.16 Save $14.16
$77.91
$77.91 - $77.91
$77.91
$63.75
$63.75 - $63.75
$63.75

Kuriyama

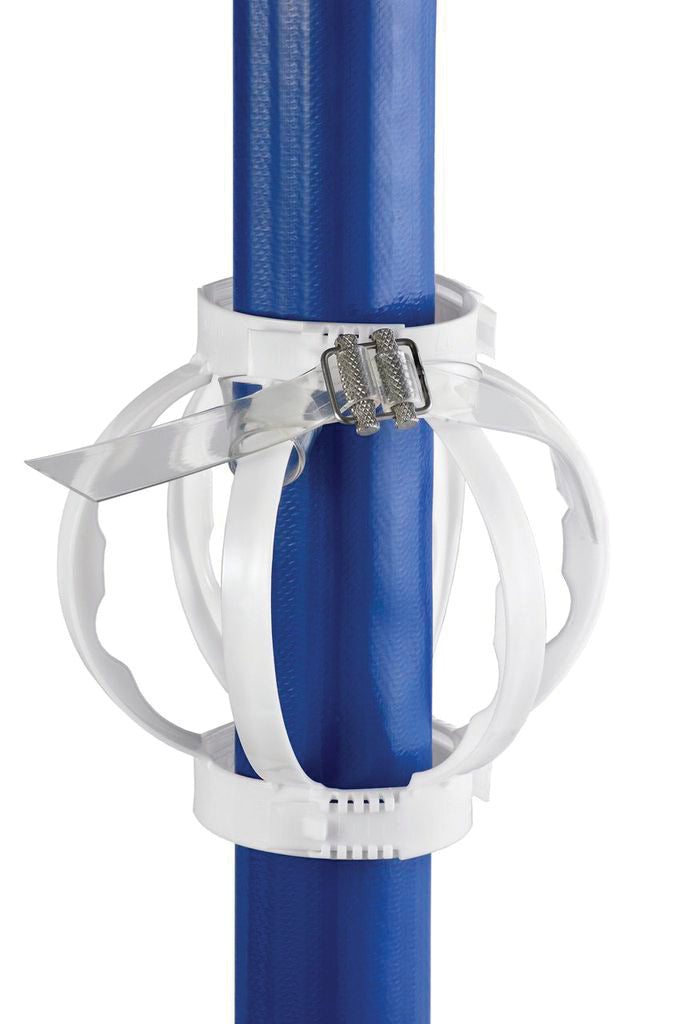

OROFLEX® WELL | Centering Segment for Well Riser Hose

Use with OFWL™ Series Flexible Well Riser Layflat Hose.
Specifications for Variant SKU: C654205 Kuriyama
Brand: OROFLEX WELL
Applications:
  • For use with OROFLEX® WELL OFWL™ Series Flexible Well Riser Hose.
Features:
  • Helps to protect hose and pump during raising/lowering.
  • Multiple segments snap together to create a single centering device (various quantities required depending on hose diameter).
  • Various sizes available to accommodate different sized wells.
Centering Segment
Part Number 		Type of
Segment		 Coupling
Diameter		 Quantity
Required
(in) (mm)
C654202 1 (small bowl height) 2" 52mm 3
C654202 1 (small bowl height) 3" 76mm 3
C654203 2 (medium bowl height) 4" 102mm 3
C654203 2 (medium bowl height) 5" 127mm 4
C654203 2 (medium bowl height) 6" 152mm 4
C654205 3 (large bowl height) 6" 152mm 3
C654205 3 (large bowl height) 8" 203mm 3
