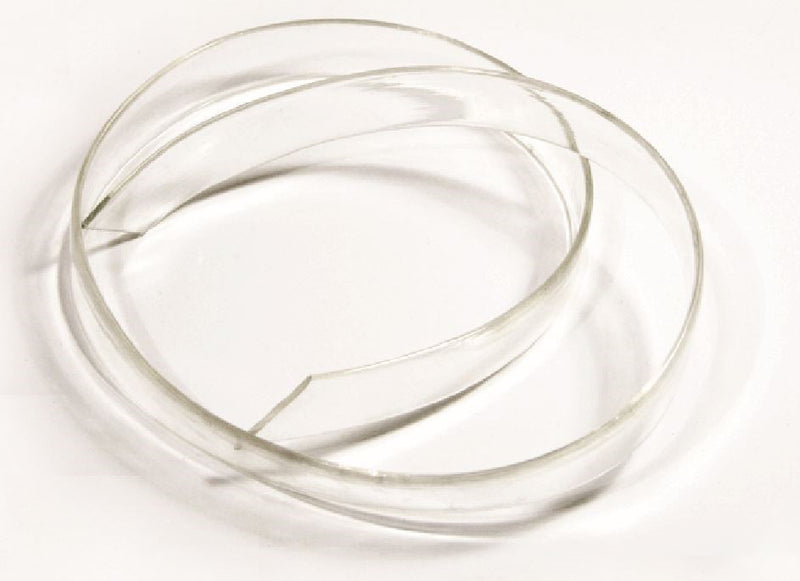

C654748 OROFLEX® WELL by Kuriyama | Transparent PU Strap | for Well Riser Hose | Use with 8" Diameter Couplings

C654748 OROFLEX® WELL by Kuriyama | Transparent PU Strap | for Well Riser Hose | Use with 8" Diameter Couplings

Save $3.80 Save $3.80
$6.05
$6.05 - $6.05
$6.05
$2.25
$2.25 - $2.25
$2.25

Kuriyama
OROFLEX® WELL | Transparent PU Strap | for Well Riser Hose

Use with OFWL™ Series Flexible Well Riser Layflat Hose.

Used to attach centering device and heavy power cables to hose.
Specifications for Variant SKU: C654748 Kuriyama
Brand: OROFLEX WELL
Material(s): Polyurethane
Applications:
  • For use with OROFLEX® WELL OFWL™ Series Flexible Well Riser Hose.
  • Transparent PU Strap & Buckle: Used to attach centering device and heavy power cables to hose.
  • Polyamide Washer & Black Cable Strap: Used to attach light power cables (under 2.7 lbs/ft) to hose

Transparent PU Strap
Part Number 		Buckle Part Number
Part Number 		White Polyamide Washer
Part Number 		Black Cable Strap
Part Number 		Coupling
Diameter
(in) (mm)
C654743 C654809 C654401 C655096 2" 52mm
C654744 C654809 C654401 C655096 3" 76mm
C654745 C654809 C654401 C655096 4" 102mm
C654746 C654809 C654401 C655096 5" 127mm
C654747 C654809 C654401 C655096 6" 152mm
C654748 C654809 C654401 C655096 8" 203mm
