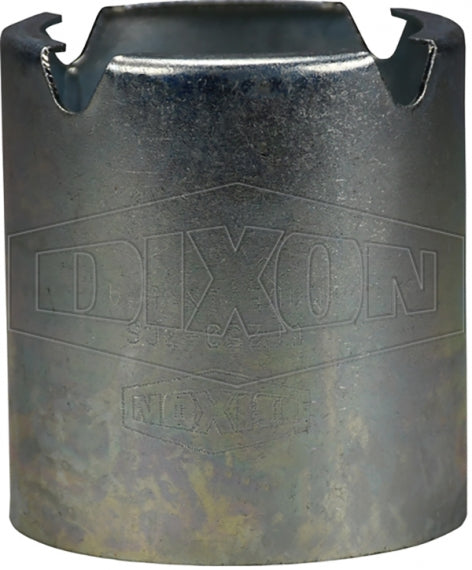

CF250-6CS Dixon King Crimp® | Ferrule | 3.063" Ferrule ID | for Hose OD from 2-61/64" to 3" | Carbon Steel

CF250-6CS Dixon King Crimp® | Ferrule | 3.063" Ferrule ID | for Hose OD from 2-61/64" to 3" | Carbon Steel

Save $10.09 Save $10.09
$25.22
$25.22 - $25.22
$25.22
$15.13
$15.13 - $15.13
$15.13

Dixon Valve & Coupling
King Crimp® Style | Ferrule
Specifications for Variant SKU: CF250-6CS Dixon
Brand: King Crimp®
Material(s): Carbon Steel
Features:
  • For use with crimp style shanks.
Safety Notes:
  • Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
  • Pressure rating given at 70°F, consult Dixon for pressure rating at elevated temperatures.
Carbon Steel
Part Number		 304 Stainless Steel
Part Number		 Hose I.D. Hose O.D Working Pressure(PSI) Ferrule I.D. Ferrule Wall Thickness Ferrule Overall Length
From To Cam &
Groove*		 King Crimp
Nipple**
CF100-1CS CF100-1SS 1" 1-13/64" 1-16/64" - - 1.313" 0.060" 2-13/16"
CF100-2CS CF100-2SS 1" 1-17/64" 1-20/64" - - 1.375" 0.060" 2-13/16"
CF100-3CS CF100-3SS 1" 1-21/64" 1-24/64" - - 1.438" 0.060" 2-13/16"
CF100-4CS CF100-4SS 1" 1-25/64" 1-28/64" - - 1.500" 0.060" 2-13/16"
CF100-5CS CF100-5SS 1" 1-29/64" 1-32/64" - - 1.563" 0.060" 2-13/16"
CF100-6CS CF100-6SS 1" 1-33/64" 1-36/64" - - 1.625" 0.060" 2-13/16"
CF100-7CS CF100-7SS 1" 1-37/64" 1-40/64" - - 1.688" 0.060" 2-13/16"
CF100-8CS CF100-8SS 1" 1-41/64" 1-44/64" - - 1.750" 0.060" 2-13/16"
CF100-9CS CF100-9SS 1" 1-45/64" 1-48/64" - - 1.813" 0.060" 2-13/16"
CF100-10CS CF100-10SS 1" 1-49/64" 1-52/64" - - 1.875" 0.060" 2-13/16"

CF125-3CS CF125-3SS 1-1/4" 1-41/64" 1-44/64" 250 PSI 350 PSI 1.750" 0.060" 2-13/16"
CF125-4CS CF125-4SS 1-1/4" 1-45/64" 1-48/64" 250 PSI 350 PSI 1.813" 0.060" 2-13/16"
CF125-5CS CF125-5SS 1-1/4" 1-49/64" 1-52/64" 250 PSI 350 PSI 1.875" 0.060" 2-13/16"
CF125-6CS CF125-6SS 1-1/4" 1-53/64" 1-56/64" 250 PSI 350 PSI 1.938" 0.060" 2-13/16"

CF150-1CS CF150-1SS 1-1/2" 1-41/64" 1-44/64" 250 PSI 350 PSI 1.750" 0.062" 2-13/16"
CF150-2CS CF150-2SS 1-1/2" 1-45/64" 1-48/64" 250 PSI 350 PSI 1.813" 0.060" 2-13/16"
CF150-3CS CF150-3SS 1-1/2" 1-49/64" 1-52/64" 250 PSI 350 PSI 1.875" 0.060" 2-13/16"
CF150-4CS CF150-4SS 1-1/2" 1-53/64" 1-56/64" 250 PSI 350 PSI 1.938" 0.060" 2-13/16"
CF150-5CS CF150-5SS 1-1/2" 1-57/64" 1-60/64" 250 PSI 350 PSI 2.000" 0.060" 2-13/16"
CF150-6CS CF150-6SS 1-1/2" 1-61/64" 2" 250 PSI 350 PSI 2.063" 0.060" 2-13/16"
CF150-7CS CF150-7SS 1-1/2" 2-1/64" 2-4/64" 250 PSI 350 PSI 2.125" 0.060" 2-13/16"
CF150-8CS CF150-8SS 1-1/2" 2-5/64" 2-8/64" 250 PSI 350 PSI 2.188" 0.060" 2-13/16"
CF150-9CS CF150-9SS 1-1/2" 2-9/64" 2-12/64" 250 PSI 350 PSI 2.250" 0.060" 2-13/16"
CF150-10CS CF150-10SS 1-1/2" 2-13/64" 2-16/64" 250 PSI 350 PSI 2.313" 0.060" 2-13/16"
CF150-11CS CF150-11SS 1-1/2" 2-17/64" 2-20/64" 250 PSI 350 PSI 2.375" 0.060" 2-13/16"
CF150-12CS CF150-12SS 1-1/2" 2-21/64" 2-24/64" 250 PSI 350 PSI 2.438" 0.060" 2-13/16"

CF200-1CS CF200-1SS 2" 2-13/64" 2-16/64" 250 PSI 300 PSI 2.313" 0.060" 3-1/8"
CF200-2CS CF200-2SS 2" 2-17/64" 2-20/64" 250 PSI 300 PSI 2.375" 0.060" 3-1/8"
CF200-3CS CF200-3SS 2" 2-21/64" 2-24/64" 250 PSI 300 PSI 2.438" 0.060" 3-1/8"
CF200-4CS CF200-4SS 2" 2-25/64" 2-28/64" 250 PSI 300 PSI 2.500" 0.060" 3-1/8"
CF200-5CS CF200-5SS 2" 2-29/64" 2-32/64" 250 PSI 300 PSI 2.563" 0.060" 3-1/8"
CF200-6CS CF200-6SS 2" 2-33/64" 2-36/64" 250 PSI 300 PSI 2.625" 0.060" 3-1/8"
CF200-7CS CF200-7SS 2" 2-37/64" 2-40/64" 250 PSI 300 PSI 2.688" 0.060" 3-1/8"
CF200-8CS CF200-8SS 2" 2-41/64" 2-44/64" 250 PSI 300 PSI 2.750" 0.060" 3-1/8"
CF200-9CS CF200-9SS 2" 2-45/64" 2-48/64" 250 PSI 300 PSI 2.813" 0.060" 3-1/8"
CF200-10CS CF200-10SS 2" 2-49/64" 2-52/64" 250 PSI 300 PSI 2.875" 0.060" 3-1/8"
CF200-11CS CF200-11SS 2" 2-53/64" 2-56/64" 250 PSI 300 PSI 2.938" 0.060" 3-1/8"
CF200-12CS CF200-12SS 2" 2-57/64" 2-60/64" 250 PSI 300 PSI 3.000" 0.060" 3-1/8"

CF250-5CS - 2-1/2" 2-57/64" 2-60/64" - 300 PSI 3.000" 0.060" 3-1/2"
CF250-6CS - 2-1/2" 2-61/64" 3" - 300 PSI 3.063" 0.060" 3-1/2"
CF250-7CS - 2-1/2" 3-1/64" 3-4/64" - 300 PSI 3.125" 0.060" 3-1/2"
CF250-8CS - 2-1/2" 3-5/64" 3-8/64" - 300 PSI 3.188" 0.060" 3-1/2"

CF300-1CS CF300-1SS 3" 3-13/64" 3-16/64" 150 PSI 300 PSI 3.313" 0.090" 4"
CF300-2CS CF300-2SS 3" 3-17/64" 3-20/64" 150 PSI 300 PSI 3.375" 0.090" 4"
CF300-3CS CF300-3SS 3" 3-21/64" 3-24/64" 150 PSI 300 PSI 3.438" 0.090" 4"
CF300-4CS CF300-4SS 3" 3-25/64" 3-28/64" 150 PSI 300 PSI 3.500" 0.090" 4"
CF300-5CS CF300-5SS 3" 3-29/64" 3-32/64" 150 PSI 300 PSI 3.563" 0.090" 4"
CF300-6CS CF300-6SS 3" 3-33/64" 3-36/64" 150 PSI 300 PSI 3.625" 0.090" 4"
CF300-7CS CF300-7SS 3" 3-37/64" 3-40/64" 150 PSI 300 PSI 3.688" 0.090" 4"
CF300-8CS CF300-8SS 3" 3-41/64" 3-44/64" 150 PSI 300 PSI 3.750" 0.090" 4"
CF300-9CS CF300-9SS 3" 3-45/64" 3-48/64" 150 PSI 300 PSI 3.813" 0.090" 4"
CF300-10CS CF300-10SS 3" 3-49/64" 3-52/64" 150 PSI 300 PSI 3.875" 0.090" 4"
CF300-11CS CF300-11SS 3" 3-53/64" 3-56/64" 150 PSI 300 PSI 3.938" 0.090" 4"
CF300-12CS CF300-12SS 3" 3-57/64" 3-60/64" 150 PSI 300 PSI 4.000" 0.090" 4"
CF300-13CS CF300-13SS 3" 3-61/64" 4" 150 PSI 300 PSI 4.063" 0.090" 4"
CF300-14CS CF300-14SS 3" 4-1/64" 4-4/64" 150 PSI 300 PSI 4.125" 0.090" 4"
CF300-15CS CF300-15SS 3" 4-5/64" 4-8/64" 150 PSI 300 PSI 4.188" 0.090" 4"
CF300-16CS CF300-16SS 3" 4-9/64" 4-12/64" 150 PSI 300 PSI 4.250" 0.090" 4"

CF400-1CS CF400-1SS 4" 4-13/64" 4-16/64" 150 PSI 300 PSI 4.313" 0.090" 4"
CF400-2CS CF400-2SS 4" 4-17/64" 4-20/64" 150 PSI 300 PSI 4.375" 0.090" 4"
CF400-3CS CF400-3SS 4" 4-21/64" 4-24/64" 150 PSI 300 PSI 4.438" 0.090" 4"
CF400-4CS CF400-4SS 4" 4-25/64" 4-28/64" 150 PSI 300 PSI 4.500" 0.090" 4"
CF400-5CS CF400-5SS 4" 4-29/64" 4-32/64" 150 PSI 300 PSI 4.563" 0.090" 4"
CF400-6CS CF400-6SS 4" 4-33/64" 4-36/64" 150 PSI 300 PSI 4.625" 0.090" 4"
CF400-7CS CF400-7SS 4" 4-37/64" 4-40/64" 150 PSI 300 PSI 4.688" 0.090" 4"
CF400-8CS CF400-8SS 4" 4-41/64" 4-44/64" 150 PSI 300 PSI 4.750" 0.090" 4"
CF400-9CS CF400-9SS 4" 4-45/64" 4-48/64" 150 PSI 300 PSI 4.813" 0.090" 4"
CF400-10CS CF400-10SS 4" 4-49/64" 4-52/64" 150 PSI 300 PSI 4.875" 0.090" 4"
CF400-11CS CF400-11SS 4" 4-53/64" 4-56/64" 150 PSI 300 PSI 4.938" 0.090" 4"
CF400-12CS CF400-12SS 4" 4-57/64" 4-60/64" 150 PSI 300 PSI 5.000" 0.090" 4"
CF400-13CS CF400-13SS 4" 4-61/64" 5" 150 PSI 300 PSI 5.063" 0.090" 4"
CF400-14CS CF400-14SS 4" 5-1/64" 5-4/64" 150 PSI 300 PSI 5.125" 0.090" 4"
CF400-15CS CF400-15SS 4" 5-5/64" 5-8/64" 150 PSI 300 PSI 5.188" 0.090" 4"
CF400-16CS CF400-16SS 4" 5-9/64" 5-12/64" 150 PSI 300 PSI 5.250" 0.090" 4"

CF600-1CS CF600-1SS 6" 6-21/64" 6-28/64" - - 6.500" 0.120" 5-7/8"
CF600-2CS CF600-2SS 6" 6-29/64" 6-36/64" - - 6.625" 0.120" 5-7/8"
CF600-3CS CF600-3SS 6" 6-37/64" 6-44/64" - - 6.750" 0.120" 5-7/8"
CF600-4CS CF600-4SS 6" 6-45/64" 6-52/64" - - 6.875" 0.120" 5-7/8"
CF600-5CS CF600-5SS 6" 6-53/64" 6-60/64" - - 7.000" 0.120" 5-7/8"
CF600-6CS CF600-6SS 6" 6-61/64" 7-4/64" - - 7.125" 0.120" 5-7/8"
CF600-7CS CF600-7SS 6" 7-5/64" 7-12/64" - - 7.250" 0.120" 5-7/8"
CF600-8CS CF600-8SS 6" 7-13/64" 7-20/64" - - 7.375" 0.120" 5-7/8"
CF600-9CS CF600-9SS 6" 7-21/64" 7-28/64" - - 7.500" 0.120" 5-7/8"

* Based on using crimp cam and groove shanks
** Based on using King Crimp nipples
