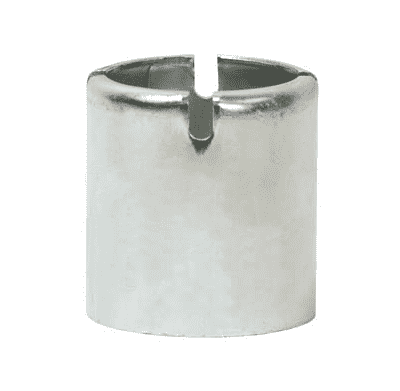

CF400-15CSHD Dixon King Crimp® | Heavy-Duty Ferrule | 5.188" Ferrule ID | for Hose OD from 5-5/64" to 5-8/64" | Carbon Steel

CF400-15CSHD Dixon King Crimp® | Heavy-Duty Ferrule | 5.188" Ferrule ID | for Hose OD from 5-5/64" to 5-8/64" | Carbon Steel

$34.86 - $34.86
$34.86
$37.19
$37.19 - $37.19
$37.19

Dixon Valve & Coupling
King Crimp® Style | Heavy Duty Ferrule

Use with Heavy-Duty Combination Nipples.
Specifications for Variant SKU: CF400-15CSHD Dixon
Shape (Orientation): No Orientation
Material(s): Carbon Steel
Features:
  • For use with crimp style shanks.
Construction:
  • Carbon Steel.
Safety Notes:
  • Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
  • 400 PSI working pressure with a minimum 4:1 safety factor (hose burst: hose working pressure) is only achieved with Dixon carbon steel ferrule part numbers CF400-6CSHD through CF400-16CSHD on Dixon Frac Fittings.
  • Pressure rating given at 70°F, consult Dixon for pressure rating at elevated temperatures.
Carbon Steel
Part Number		 Hose I.D. For Hose O.D Ferrule Wall Thickness Ferrule I.D. Ferrule Overall Length
From To
CF400-6CSHD 4" 4-33/64" 4-36/64" 0.120" 4.625" 4"
CF400-7CSHD 4" 4-37/64" 4-40/64" 0.120" 4.688" 4"
CF400-8CSHD 4" 4-41/64" 4-44/64" 0.120" 4.750" 4"
CF400-9CSHD 4" 4-45/64" 4-48/64" 0.120" 4.813" 4"
CF400-10CSHD 4" 4-49/64" 4-52/64" 0.120" 4.875" 4"
CF400-11CSHD 4" 4-53/64" 4-56/64" 0.120" 4.938" 4"
CF400-12CSHD 4" 4-57/64" 4-60/64" 0.120" 5.000" 4"
CF400-13CSHD 4" 4-61/64" 5" 0.120" 5.063" 4"
CF400-14CSHD 4" 5-1/64" 5-4/64" 0.120" 5.125" 4"
CF400-15CSHD 4" 5-5/64" 5-8/64" 0.120" 5.188" 4"
CF400-16CSHD 4" 5-9/64" 5-12/64" 0.120" 5.250" 4"
