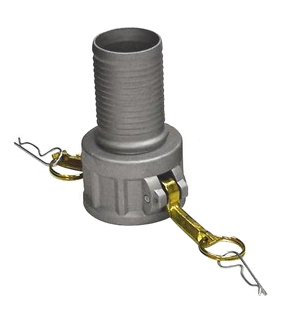

CGC-250CR-A1 by Midland | Crimplok Cam & Groove Coupling | Part C | 2-1/2" Female Coupler x 2-1/2" Hose Barb | Straight | Aluminum

Save $6.57

$16.42

$16.42 - $16.42

$16.42

$9.85

$9.85 - $9.85

$9.85

Midland Industries
Crimplok Cam & Groove - Part C - Female Coupler x Hose Barb - Aluminum

Designed for use with Buchanan Crimp Sleeves and Interlocking Ferrules.

Inventory @ Manufacturers Warehouse: 81 Units

Specifications for Variant SKU: CGC-250CR-A1 Midland
Shape (Orientation):	Straight
Ends Configuration:	2-1/2in Female Cam & Groove, 2-1/2in Hose Barb
Material(s):	Aluminum

Features:
Automatic self-locking arms prevent accidental disconnection. Machined multi-serrated shank with interlocking groove. Aluminum with Brass Self Locking Arms. All fittings have a Crimplok groove for the ferrule end the Lok into for a strong permanent seal. Serrations on the couplings and fittings are not as sharp at the top, but become sharper towards the Crimplok groove. The length of the barb and sleeve/ ferrule are matched for a safer, cleaner connection. Crimplok connections do not have sharp clamp buckles or edges. Interchangeable with most market systems.
Pressure:
2" @ 250 PSI 3" & 4" @ 150 PSI 6" @ 75 PSI 6" @ 150 PSI (4 Arms)

Part Number	Size
CGC-150CR-A1	1-1/2"
CGC-200CR-A1	2"
CGC-250CR-A1	2-1/2"
CGC-300CR-A1	3"
CGC-400CR-A1	4"
CGC-600CR-A1	6"
CGC-800CR-A1	8"

Midland Industries

Midland Industries is a family of brands recognizable industry wide. Midland is a supplier of brass fittings, valves, and accessories for hose, pipe and tube in brass, bronze, stainless steel, steel, malleable iron, and plastics.
