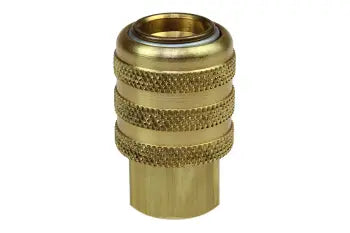

CH15A by Coilhose | Open Lock-On Chuck | 1/4" Female NPT Thread

Name: CH15A by Coilhose | Open Lock-On Chuck | 1/4" Female NPT Thread
Brand: Coilhose Pneumatics
SKU: CH15A Coilhose
Price: 9.71 USD
Availability: InStock

Save $1.21

$10.92

$10.92 - $10.92

$10.92

$9.71

$9.71 - $9.71

$9.71

Coilhose Pneumatics - Air Chucks & Chuck Assemblies

Quantity

Specifications for Variant SKU: CH15A Coilhose

Model	Fittings	Description	Check Type	Features
CH09	1/4" FPT	Ball Chuck and Clip	Closed	Closed Check: Contains a tang that engages the tire valve, air only flows once the tire valve is engaged.
CH09A	1/4" FPT	Ball Chuck and Clip	Open	Open Check: Contains a tang that engages the tire valve, air flows freely through the chuck.
CH10	1/4" FPT	Ball Chuck	Closed	-
CH10A	1/4" FPT	Ball Chuck	Open	-
CH11	-	Clip for 1/4" Barb (CH10 & CH12)	-	-
CH12	1/4" Hose Barb	Ball Chuck	Closed	Closed Check: Contains a tang that engages the tire valve, air only flows once the tire valve is engaged.
CH14A	1/4" Hose Barb	Straight Push-On Chuck	Open	-
CH15	1/4" FPT	Lock-On Chuck	Closed	Closed Check: Contains a tang that engages the tire valve, air only flows once the tire valve is engaged.
CH15A	1/4" FPT	Lock-On Chuck	Open	Open Check: Contains a tang that engages the tire valve, air flows freely through the chuck.
CH16	1/4" FPT	Dual Foot Chuck	Closed	Closed Check: Contains a tang that engages the tire valve, air only flows once the tire valve is engaged.
CH16A	1/4" FPT	Dual Foot Chuck	Open	Open Check: Contains a tang that engages the tire valve, air flows freely through the chuck.
CH17	1/4" Hose Barb (7mm)	Clip-On Air Chuck	Open	European Chuck
CHAP4500**	1/4" FPT	Straight Assembly	Closed	-

** Swivel female ball type assemblies.
