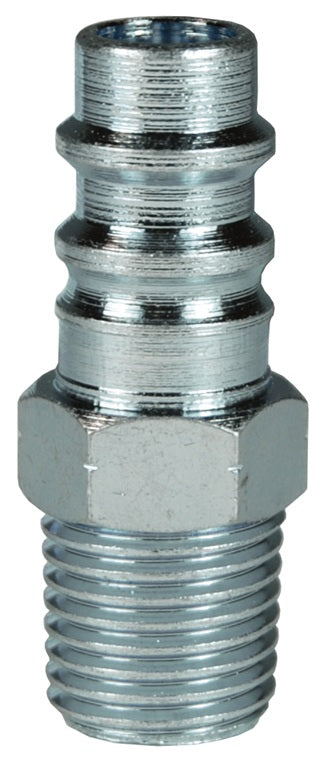

CJ3BM4 Dixon Steel CJ-Series Quick Disconnect 3/8" European Interchange Pneumatic Nipple - 1/2"-14 Male BSPT

CJ3BM4 Dixon Valve Steel CJ-Series Quick Disconnect 3/8" European Interchange Pneumatic Nipple - 1/2"-14 Male BSPT

$0.00 - $0.00
$0.00
$0.00
$0.00 - $0.00
$0.00

Dixon Quick Disconnect Couplings - CJ-Series Pneumatic Couplings - CJ-Series European Interchange Nipple (Male Threads)
Can I get a discount on my purchase?

Our listed prices are our lowest possible price with current costing but when volumes/value are high enough sometimes we can pass on a discount from the manufacturer.

Some products have predefined quantity discounts that will apply automatically, those pages have a table near the price describing the discount teirs.

If you feel your purchase quantity of a particular product is very large and want us to investigate with the manufacturer please feel free to Contact Us.

What if my item is out of stock?

All customers get an email regarding the shipping time frame of their purchase, usually within the business day. If your item is in stock we will ship within 1 business day, otherwise, the email will contain a lead time. If you do not receive this email, we recommend checking your email's spam folder. If you have any questions at that point please do not hesitate to Contact Us or chat below!

Can I get free shipping?

Shipping will calculate as free instantly if your order value exceeds $5000.

Some exceptions apply.

Free Freight is only available for the Contiguous USA.

Specifications for Variant SKU: CJ3BM4 Dixon
Shape (Orientation): Straight
Material(s): Steel
Specifications:
  • Rated pressure for connected Brass Coupler & Steel Plug: 300 PSI (20 bar) Maximum Working and 8,000 PSI (552 bar) Burst
  • Temperature Range: -40 deg. F to +250 deg. F (-40 deg. C to +121 deg. C)
Construction:
  • Machined components are manufactured using solid bar stock.
  • Steel componentry is plated using ROHS Compliant Trivalent Chrome.
Compatibility & Interchange Data:
  • European High-Flow Interchange
  • 1/4" interchanges with Coilhose Megaflow.CEJN 320,and Rectus 25KA/26KA
  • 3/8" interchanges with Rectus 27KA and Series 410
Safety Notes:
  • It is important to be safe when installing quick disconnect couplings into a pneumatic circuit. Never install a pneumatic coupling directly into an air tool, use a piece of hose that is at least 18" long, between the tool and the coupling, to prevent damage to the coupling. To protect the operator, safety devices, such as a safety check valve and safety cable should be installed in case there is a hose or coupling failure.
  • WARNING: Brass products contain a chemical known to the State of California to cause birth defects or other reproductive harm. Do not use in connection with drinking water. Wash hands after handling.
Part Number Size Male Thread Material Length Max. OD Hex Weight (Lbs.)
CJ2M2-LG 1/4" 1/4" - 18 NPT steel 1.48" 0.65" 9/16" 0.0700
CJ2M2-B 1/4" 1/4" - 18 NPT brass 1.48" 0.65" 9/16" 0.0500
CJ2BM2-LG 1/4" 1/4" - 19 BSPT steel 1.48" 0.65" 9/16" 0.0700
CJ2BM2-B 1/4" 1/4" - 19 BSPT brass 1.48" 0.65" 9/16" 0.0500
CJ2M3-LG 1/4" 3/8" - 18 NPT steel 1.56" 0.79" 11/16" 0.0900
CJ2M3-B 1/4" 3/8" - 18 NPT brass 1.56" 0.79" 11/16" 0.0800
CJ2BM3-LG 1/4" 3/8" - 19 BSPT steel 1.56" 0.79" 11/16" 0.0900
CJ2BM3-B 1/4" 3/8" - 19 BSPT brass 1.56" 0.79" 11/16" 0.0800
CJ3M3 3/8" 3/8" - 18 NPT steel 1.57" 0.79" 11/16" 0.1300
CJ3M3-B 3/8" 3/8" - 18 NPT brass 1.57" 0.79" 11/16" 0.1300
CJ3BM3 3/8" 3/8" - 19 BSPT steel 1.57" 0.79" 11/16" 0.1300
CJ3BM3-B 3/8" 3/8" - 19 BSPT brass 1.57" 0.79" 11/16" 0.1300
CJ3M4 3/8" 1/2" - 14 NPT steel 1.81" 1.01" 7/8" 0.1800
CJ3M4-B 3/8" 1/2" - 14 NPT brass 1.81" 1.01" 7/8" 0.1800
CJ3BM4 3/8" 1/2" - 14 BSPT steel 1.81" 1.01" 7/8" 0.1800
CJ3BM4-B 3/8" 1/2" - 14 BSPT brass 1.81" 1.01" 7/8" 0.1800
