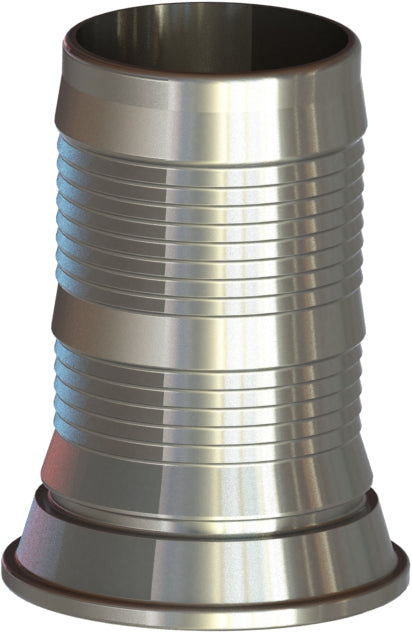

CJHS-3 by Campbell Fittings | CHEMJOINT™ Coupling | Hose Stem | 3/4" Hose Shank x 3/4" Hose Size | Straight | 316 Stainless Steel

CJHS-3 by Campbell Fittings | CHEMJOINT™ Coupling | Hose Stem | 3/4" Hose Shank x 3/4" Hose Size | Straight | 316 Stainless Steel

Save $60.95 Save $60.95
$152.38
$152.38 - $152.38
$152.38
$91.43
$91.43 - $91.43
$91.43

by Campbell
CHEMJOINT™ Couplings:CHEMJOINT™ HOSE STEM
Specifications for Variant SKU: CJHS-3 Campbell Fittings
Brand: CHEMJOINT™
Shape (Orientation): Straight
Material(s): 316 Stainless Steel
Description: ChemJoint™ Couplings and Male Stems create an extremely versatile Chemical Hose assembly system. The system solves problematic Cam and Groove issues such as pressure, temperature, side load, viscosity, line dedication and ergonomics.
Features and Benefits:
  • Graduated serration pattern - sharper near the interlock, rounder near the end. Grips and seals plastic lined Chemical Hose without cutting through the tube.
  • 360° interlock groove on fitting locks ferrule into place for the ultimate in holding power.
  • Crimped assemblies are low profile and eliminate sharp edges from bands.
  • Viton® Seal allows coupling to meet pressure ratings with hand-tightened nut.
Recommended Hose Attachment:
  • Interlocking ferrules
  • Preformed bands
Part Number Hose Size
CJHS-3 3/4"
CJHS-4 1"
CJHS-6 1-1/2"
CJHS-8 2"
CJHS-12 3"
Campbell Fittings

Campbell Fittings

Campbell Fittings offers a range of hose fittings, couplings, ferrules, and sleeves, for applications across a variety of industries.
