CM3F3 by Dixon Valve | Hydraulic Quick Disconnect Coupling | CM-Series | 3/8" Female NPTF x 3/8" Industrial Mold Interchange | Plug | Steel

Save $0.14

$2.43

$2.43 - $2.43

$2.43

$2.29

$2.29 - $2.29

$2.29

Dixon Valve & Coupling

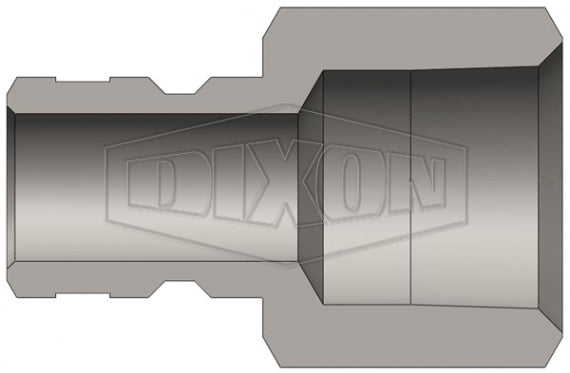

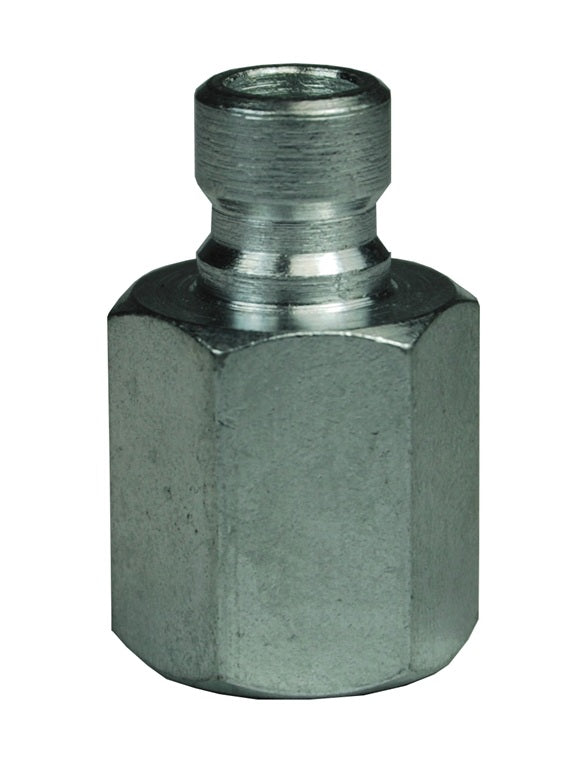

Hydraulic Coupling: CM-Series Industrial Mold Interchange Plug (Female Threads)

Quantity

Specifications for Variant SKU: CM3F3 Dixon
Series:	CM-Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male CM-Series QD Interchange, 3/8in Female NPTF
Material(s):	Steel

Compatibility & Interchange:	Mold Coolant Interchange Foster Series- FJT, Hansen Flo-Temp, Tomco MC-Series, Parker Moldmate, DME Jiffy-Tite
Construction:	Machined components are manufactured using solid steel or brass bar stock. Stainless steel balls, retaining rings, and springs maximize corrosion resistance and extend service life. Steel componentry is plated using ROHS-compliant trivalent chrome.
Safety Notes:	Maximum working and burst pressure is based on a coupled set, contact Dixon for pressure ratings.
Additional Information:	For a selection guide, cross reference tables, safety info, fluid compatibility, and other general info, please see: Dixon Valve Quick Disconnect Guide.PDF

CM-Series \| Industrial Mold Interchange (Connected) Rated Pressure Chart
Body Size	Unvalved Coupler/Brass Plug		Unvalved Coupler/Steel Plug		Valved Coupler/Brass Plug		Valved Coupler/Steel Plug		Locking Ball Quantity	Flow ΔP = 7 PSI
Body Size	Max. Working	Burst	Max. Working	Burst	Max. Working	Burst	Max. Working	Burst	Locking Ball Quantity	Flow ΔP = 7 PSI
1/4"	300 PSI (20 Bar)	10,000 PSI (700 Bar)	500 PSI (35 Bar)	10,700 PSI (750 Bar)	300 PSI (20 Bar)	6,000 PSI (400 Bar)	300 PSI (20 Bar)	6,100 PSI (400 Bar)	6	3 GPM
3/8"	300 PSI (20 Bar)	14,500 PSI (1,000 Bar)	500 PSI (35 Bar)	14,200 PSI (1,000 Bar)	300 PSI (20 Bar)	6,700 PSI (450 Bar)	300 PSI (20 Bar)	6,100 PSI (400 Bar)	8	9 GPM
1/2"	300 PSI (20 Bar)	4,900 PSI (340 Bar)	-	-	-	-	-	-	8	15 GPM

CM-Series \| Industrial Mold Interchange Plug (Female Threads)

Part Number	Coupling Type	Body Size	Thread Size	Material	Length	Max. OD	Hex
CM2F1	Plug/Male	1/4"	1/8" - 27 Female NPTF	Steel	0.90" (22.9mm)	0.58" (14.7mm)	1/2"
CM2F1-B	Plug/Male	1/4"	1/8" - 27 Female NPTF	Brass	0.90" (22.9mm)	0.58" (14.7mm)	1/2"
CM2F2	Plug/Male	1/2"	1/4" - 18 Female NPTF	Steel	1.12" (28.4mm)	0.72" (18.3mm)	5/8"
CM2F2-B	Plug/Male	1/4"	1/4" - 18 Female NPTF	Brass	1.12" (28.4mm)	0.72" (18.3mm)	5/8"
CM2F3	Plug/Male	1/4"	3/8" - 18 Female NPTF	Steel	1.12" (28.4mm)	0.87" (22.1mm)	3/4"
CM2F3-B	Plug/Male	1/4"	3/8" - 18 Female NPTF	Brass	1.12" (28.4mm)	0.87" (22.1mm)	3/4"
CM3F2	Plug/Male	3/8"	1/4" - 18 Female NPTF	Steel	1.34" (34.0mm)	0.72" (18.3mm)	5/8"
CM3F2-B	Plug/Male	3/8"	1/4" - 18 Female NPTF	Brass	1.34" (34.0mm)	0.72" (18.3mm)	5/8"
CM3F3	Plug/Male	3/8"	3/8" - 18 Female NPTF	Steel	1.34" (34.0mm)	0.87" (22.1mm)	3/4"
CM3F3-B	Plug/Male	3/8"	3/8" - 18 Female NPTF	Brass	1.34" (34.0mm)	0.87" (22.1mm)	3/4"
CM4F4-B	Plug/Male	1/2"	1/2" - 14 Female NPTF	Brass	1.69" (42.9mm)	1.16" (29.5mm)	1"
CM4F6-B	Plug/Male	1/2"	3/4" - 14 Female NPTF	Brass	1.69" (42.9mm)	1.37" (34.8mm)	1-3/16"
