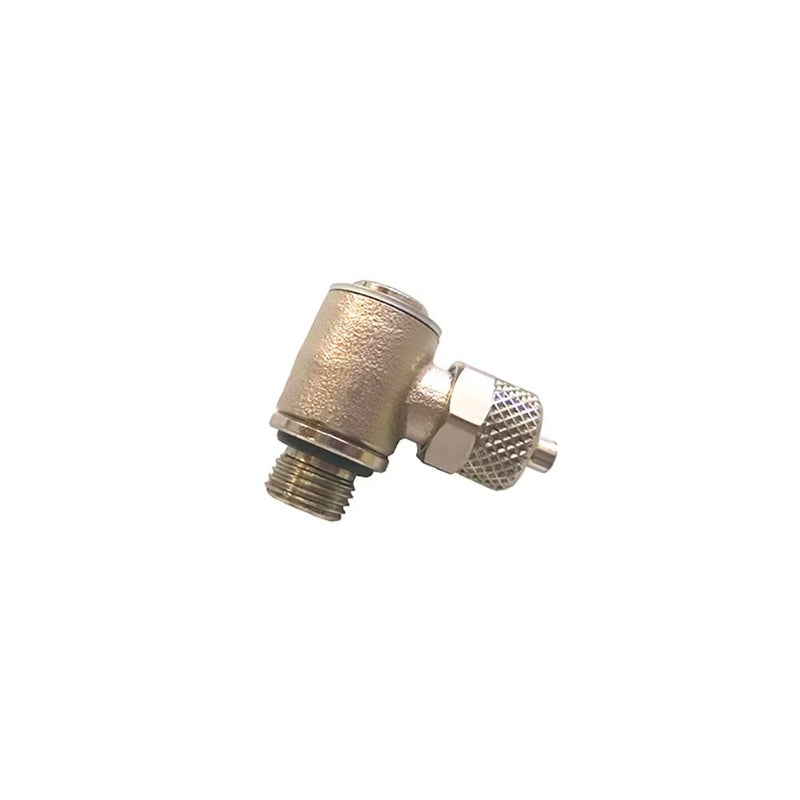

COR4BPL6/8-1/4 by Parker | Legris Stud Fitting | 6x8 mm Tube OD x 1/4" Male BSPP Thread | 14 mm Hex | Banjo | Nickel-Plated Brass

COR4BPL6/8-1/4 by Parker | Legris Stud Fitting | 6x8 mm Tube OD x 1/4" Male BSPP Thread | 14 mm Hex | Banjo | Nickel-Plated Brass

Save $425.33 Save $425.33
$1,063.33
$1,063.33 - $1,063.33
$1,063.33
$638.00
$638.00 - $638.00
$638.00

by Parker Hannifin
Nickel-Plated Brass Spigot Fitting:COR4BPL Single Banjo, Male BSPP Thread

Package Quantity: 10 Units

Specifications for Variant SKU: COR4BPL6/8-1/4 Parker | 10 |
Series: COR4BPL Series
Shape (Orientation): Banjo
Material(s): Nickel-Plated Brass, Steel
Seal Material(s): Buna-N/Nitrile Rubber
Special Properties: Silicone Free, Corrosion Resistance
Technical Characteristics:
  • Compatible Fluids: Compressed air
  • Working Pressure: Vacuum to 18 bar BPLM-M nut
    Vacuum to40 bar with BPLM nut
  • Working Temperature: -40°C to +100°C
      • Reliable performance is dependent upon the type of fluid conveyed and tubing being used.
      Guaranteed for use with vacuum of 755 mm Hg (99% vacuum).
Advantages:
  • Full flow sealing system
  • Compatible with flexible and semi-rigid tubes (polyurethane, polyamide, polyethylene, fluoropolymers, etc.)
  • Reliable direct sealing system without the use of a seal or olive
  • Nickel-plated for increased corrosion resistance
Component Materials:
  • Body: Nickel-plated brass
  • Nut: Nickel-plated brass
Part Number ØD C E F H H1 L Kg
COR4BPL6/8-1/4 6x8 mm 1/4" 6.5 mm 14 mm 31.5 mm 10 mm 26 mm .101 Kg
COR4BPL6/8-1/8 6x8 mm 1/8" 6.5 mm 14 mm 25.5 mm 9 mm 24 mm .073 Kg

These parts are supplied with peripheral seals.
The banjo bolt is made of steel.
Compatible with BPLM-M nut only.

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division

Parker Fluid System Connectors Division delivers quality and service from design to delivery. Their engineers leverage advanced technology to create prototypes, refine designs, and improve manufacturing efficiencies, offering tailored solutions. ISO 9001 certified and focused on sustainability, they utilize recyclable materials and a brass chip recycling program to protect the environment and control costs. Flexible assembly, packaging, and shipping systems support diverse needs, including kitting and custom labeling, ensuring high-quality products and outstanding customer support.
