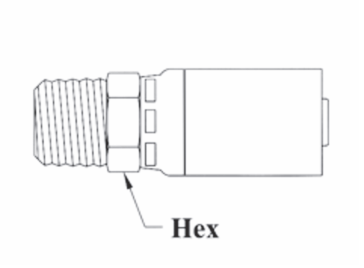

CS01-8X8 Couplamatic VARI-CRIMP Coupling - NPTF - Male Solid - 1/2" Hose ID - 1/2-14 Thread (Old Part Number: 803V)

CS01-8X8 by Couplamatic | VARI-CRIMP Coupling | 1/2" Hose ID x 1/2-14 Thread NPTF Male Solid | Straight | Trivalent Zinc Plating | Replaces: 803V | Pack of 20

Save $45.17

$112.93

$112.93 - $112.93

$112.93

$67.76

$67.76 - $67.76

$67.76

Couplamatic Systems Inc.
Vari-Crimp Couplings - NPTF - Male Solid

Package Quantity: 20 EA

Specifications for Variant SKU: CS01-8X8 Couplamatic \| 20 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1/2in Male NPTF, 1/2in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Pipe Size	Thread Size	Hex Size	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS01-4X2	1/4"	1/8"	1/8-27	9/16"	400V	HY04-02MP	101HY-2-4	04U-102
CS01-4X4	1/4"	1/4"	1/4-18	9/16"	403V	HY04-04MP	101HY-4-4	04U-104
CS01-4X6	1/4"	3/8"	3/8-18	11/16"	415V	HY04-06MP	101HY-6-4	04U-106
CS01-4X8	1/4"	1/2"	1/2-14	7/8"	439V	HY04-08MP	101HY-8-4	04U-108
CS01-6X4	3/8"	1/4"	1/4-18	3/4"	600V	HY06-04MP	101HY-4-6	06U-104
CS01-6X6	3/8"	3/8"	3/8-18	3/4"	603V	HY06-06MP	101HY-6-6	06U-106
CS01-6X8	3/8"	1/2"	1/2-14	7/8"	615V	HY06-08MP	101HY-8-6	06U-108
CS01-8X4	1/2"	1/4"	1/4-18	7/8"	866V	HY08-04MP	101HY-4-8	08U-104
CS01-8X6	1/2"	3/8"	3/8-18	7/8"	800V	HY08-06MP	101HY-6-8	08U-106
CS01-8X8	1/2"	1/2"	1/2-14	7/8"	803V	HY08-08MP	101HY-8-8	08U-108
CS01-8X12	1/2"	3/4"	3/4-14	1-1/8"	854V	HY08-12MP	101HY-12-8	08U-112
CS01-10X8	5/8"	1/2"	1/2-14	15/16"	1000V	HY10-08MP	101HY-8-10	10U-108
CS01-10X12	5/8"	3/4"	3/4-14	1-1/8"	1003V	HY10-12MP	101HY-12-10	10U-112
CS01-12X8	3/4"	1/2"	1/2-14	1-1/8"	1200V	HY12-08MP	101HY-8-12	12U-108
CS01-12X12	3/4"	3/4"	3/4-14	1-1/8"	1203V	HY12-12MP	101HY-12-12	12U-112
CS01-12X16	3/4"	1"	1-11-1/2	1-3/8"	1254V	HY12-16MP	101HY-16-12	12U-116
CS01-16X12	1"	3/4"	3/4-14	1-3/8"	1603V	HY16-12MP	101HY-12-16	16U-112
CS01-16X16	1"	1"	1-11-1/2	1-3/8"	1600V	HY16-16MP	101HY-16-16	16U-116
CS01-16X16BR*	1"	1"	1-11-1/2	1-3/8"	NA	-	-	-
CS01-20X20	1-1/4"	1-1/4"	1-1/4-11-1/2	1-11/16"	2000V	HY20-20MP	101HY-20-20	20U-120

*BR - Brass Stem

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
