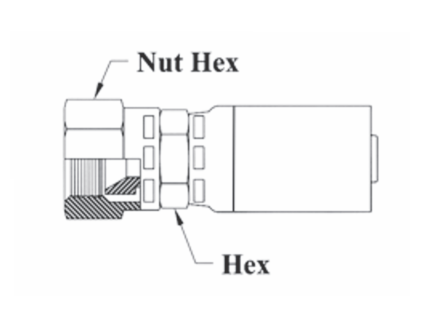

CS07-4X6 Couplamatic VARI-CRIMP Coupling - SAE 45° - Female Swivel - 1/4" Hose ID - 5/8x18 Thread (Old Part Number: 442V)

CS07-4X6 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 5/8x18 Thread SAE 45° Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 442V

Save $3.05

$7.62

$7.62 - $7.62

$7.62

$4.57

$4.57 - $4.57

$4.57

Couplamatic Systems Inc.
Vari-Crimp Couplings - SAE 45° - Female Solid

Specifications for Variant SKU: CS07-4X6 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Female SAE 45 Flare, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Hex Size	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	Hex Size	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS07-4X6	1/4"	5/8x18	3/8"	5/8"	13/16"	442V	HY04-06FA	108HY-6-4	-
CS07-6X6	3/8"	5/8x18	3/8"	11/16"	3/4"	633V	HY06-06FA	108HY-6-6	06U-406
CS07-12X12	3/4"	1-1/16x14	3/4"	1-1/8"	1-1/4"	1224V	HY12-12FA	108HY-12-12	12U-412

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
