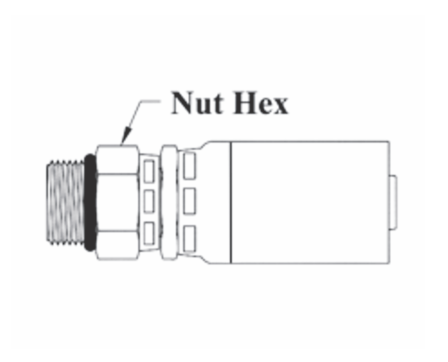

CS12-12X12 Couplamatic VARI-CRIMP Coupling - ORB - Male Swivel - 3/4" Hose ID - 1-1/16x12 Thread (Old Part Number: 1239V)

CS12-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-1/16x12 Thread ORB Male Swivel | Straight | Trivalent Zinc Plating | Replaces: 1239V

Save $11.24 Save $11.24
$28.10
$28.10 - $28.10
$28.10
$16.86
$16.86 - $16.86
$16.86

Couplamatic Systems Inc.
Vari-Crimp Couplings - ORB - Male Swivel
Specifications for Variant SKU: CS12-12X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 3/4in Male O-Ring Boss, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
Part Number Hose ID Thread Size Tube OD Hex Size Nut Hex Previous Part Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS12-4X4 1/4" 7/16x20 1/4" 9/16" 5/8" 457V HY04-04RC 10GHY-4-4 04U-R04
CS12-6X6 3/8" 9/16x18 3/8" 11/16" 3/4" 678V HY06-06RC 10GHY-6-6 06U-R06
CS12-6X8 3/8" 3/4x16 1/2" 3/4" 7/8" 645V HY06-08RC 10GHY-8-6 06U-R08
CS12-8X8 1/2" 3/4x16 1/2" 13/16" 7/8" 836V HY08-08RC 10GHY-8-8 08U-R08
CS12-8X10 1/2" 7/8x14 5/8" 13/16" 1" 839V HY08-10RC 10GHY-10-8 08U-R10
CS12-12X12 3/4" 1-1/16x12 3/4" 1-1/8" 1-1/4" 1239V HY12-12RC 10GHY-12-12 -
CS12-16X16 1" 1-5/16x12 1" 1-3/8" 1-1/2" 1639V - - -

- Swivel for installation purposes only. Leakage may occur at low pressure.

-The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
