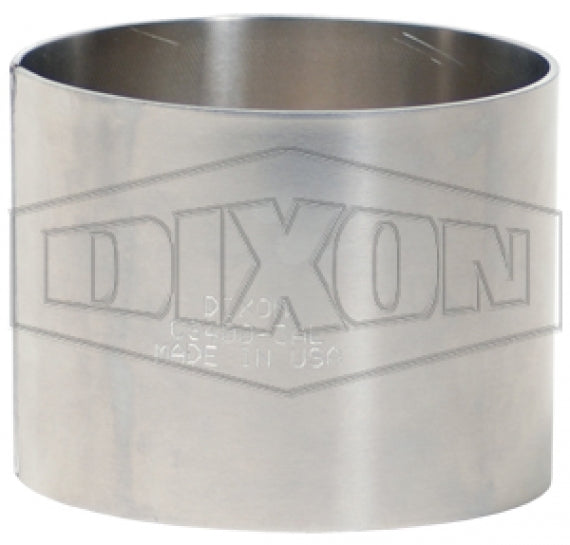

CS125-5SS Dixon King Crimp® | Sleeve | 1.875" Sleeve ID | for Hose OD from 1-49/64" to 1-52/64" | 304 Stainless Steel

CS125-5SS Dixon King Crimp® | Sleeve | 1.875" Sleeve ID | for Hose OD from 1-49/64" to 1-52/64" | 304 Stainless Steel

Save $0.91 Save $0.91
$8.19
$8.19 - $8.19
$8.19
$7.28
$7.28 - $7.28
$7.28

Dixon Valve & Coupling
King Crimp® Style | Sleeve
Specifications for Variant SKU: CS125-5SS Dixon
Shape (Orientation): No Orientation
Material(s): 304 Stainless Steel
Features:
  • For use with crimp style shanks.
  • For liquid service only.
Safety Notes:
  • Only use the crimp style shanks with the crimp style sleeves and ferrules. Due to differences in dimensions and tolerances for safety reasons, do not interchange other manufacturer's products with Dixon products.
  • Pressure rating given at 70°F, consult Dixon for pressure rating at elevated temperatures.
Carbon Steel
Part Number		 304 Stainless Steel
Part Number		 Aluminum
Part Number		 Hose
I.D.		 Hose O.D Working Pressure
(PSI)		 Sleeve I.D. Sleeve
Wall Thickness		 Sleeve Overall Length
From To Cam &
Groove*		 King Crimp
Nipple**
CS100-1CS CS100-1SS - 1" 1-13/64" 1-16/64" - - 1.313" 0.060" 2-1/2"
CS100-2CS CS100-2SS CS100-2AL 1" 1-17/64" 1-20/64" - - 1.375" 0.060" 2-1/2"
CS100-3CS CS100-3SS - 1" 1-21/64" 1-24/64" - - 1.438" 0.060" 2-1/2"
CS100-4CS CS100-4SS CS100-4AL 1" 1-25/64" 1-28/64" - - 1.500" 0.060" 2-1/2"
CS100-5CS CS100-5SS - 1" 1-29/64" 1-32/64" - - 1.563" 0.060" 2-1/2"
CS100-6CS CS100-6SS CS100-6AL 1" 1-33/64" 1-36/64" - - 1.625" 0.060" 2-1/2"
CS100-7CS CS100-7SS - 1" 1-37/64" 1-40/64" - - 1.688" 0.060" 2-1/2"
CS100-8CS CS100-8SS - 1" 1-41/64" 1-44/64" - - 1.750" 0.060" 2-1/2"
CS100-9CS CS100-9SS - 1" 1-45/64" 1-48/64" - - 1.813" 0.060" 2-1/2"
CS100-10CS CS100-10SS - 1" 1-49/64" 1-52/64" - - 1.875" 0.060" 2-1/2"

CS125-3CS CS125-3SS - 1-1/4" 1-41/64" 1-44/64" 250 PSI 300 PSI 1.750" 0.060" 2-1/2"
CS125-4CS CS125-4SS - 1-1/4" 1-45/64" 1-48/64" 250 PSI 300 PSI 1.813" 0.060" 2-1/2"
CS125-5CS CS125-5SS - 1-1/4" 1-49/64" 1-52/64" 250 PSI 300 PSI 1.875" 0.060" 2-1/2"
CS125-6CS CS125-6SS - 1-1/4" 1-53/64" 1-56/64" 250 PSI 300 PSI 1.938" 0.060" 2-1/2"

CS150-1CS CS150-1SS - 1-1/2" 1-41/64" 1-44/64" 250 PSI 300 PSI 1.750" 0.060" 2-1/2"
CS150-2CS CS150-2SS - 1-1/2" 1-45/64" 1-48/64" 250 PSI 300 PSI 1.813" 0.060" 2-1/2"
CS150-3CS CS150-3SS CS150-3AL 1-1/2" 1-49/64" 1-52/64" 250 PSI 300 PSI 1.875" 0.060" 2-1/2"
CS150-4CS CS150-4SS - 1-1/2" 1-53/64" 1-56/64" 250 PSI 300 PSI 1.938" 0.060" 2-1/2"
CS150-5CS CS150-5SS - 1-1/2" 1-57/64" 1-60/64" 250 PSI 300 PSI 2.000" 0.060" 2-1/2"
CS150-6CS CS150-6SS - 1-1/2" 1-61/64" 2" 250 PSI 300 PSI 2.063" 0.060" 2-1/2"
CS150-7CS CS150-7SS CS150-7AL 1-1/2" 2-1/64" 2-4/64" 250 PSI 300 PSI 2.125" 0.060" 2-1/2"
CS150-8CS CS150-8SS - 1-1/2" 2-5/64" 2-8/64" 250 PSI 300 PSI 2.188" 0.060" 2-1/2"
CS150-9CS CS150-9SS - 1-1/2" 2-9/64" 2-12/64" 250 PSI 300 PSI 2.250" 0.060" 2-1/2"
CS150-10CS CS150-10SS - 1-1/2" 2-13/64" 2-16/64" 250 PSI 300 PSI 2.313" 0.060" 2-1/2"
CS150-11CS CS150-11SS - 1-1/2" 2-17/64" 2-20/64" 250 PSI 300 PSI 2.375" 0.060" 2-1/2"
CS150-12CS CS150-12SS - 1-1/2" 2-21/64" 2-24/64" 250 PSI 300 PSI 2.438" 0.060" 2-1/2"

CS200-1CS CS200-1SS - 2" 2-13/64" 2-16/64" 250 PSI 250 PSI 2.313" 0.060" 2-7/8"
CS200-2CS CS200-2SS - 2" 2-17/64" 2-20/64" 250 PSI 250 PSI 2.375" 0.060" 2-7/8"
CS200-3CS CS200-3SS - 2" 2-21/64" 2-24/64" 250 PSI 250 PSI 2.438" 0.060" 2-7/8"
CS200-4CS CS200-4SS CS200-4AL 2" 2-25/64" 2-28/64" 250 PSI 250 PSI 2.500" 0.060" 2-7/8"
CS200-5CS CS200-5SS CS200-5AL 2" 2-29/64" 2-32/64" 250 PSI 250 PSI 2.563" 0.060" 2-7/8"
CS200-6CS CS200-6SS - 2" 2-33/64" 2-36/64" 250 PSI 250 PSI 2.625" 0.060" 2-7/8"
CS200-7CS CS200-7SS - 2" 2-37/64" 2-40/64" 250 PSI 250 PSI 2.688" 0.060" 2-7/8"
CS200-8CS CS200-8SS - 2" 2-41/64" 2-44/64" 250 PSI 250 PSI 2.750" 0.060" 2-7/8"
CS200-9CS CS200-9SS - 2" 2-45/64" 2-48/64" 250 PSI 250 PSI 2.813" 0.060" 2-7/8"
CS200-10CS CS200-10SS CS200-10AL 2" 2-49/64" 2-52/64" 250 PSI 250 PSI 2.875" 0.060" 2-7/8"
CS200-11CS CS200-11SS CS200-11AL 2" 2-53/64" 2-56/64" 250 PSI 250 PSI 2.938" 0.060" 2-7/8"
CS200-12CS CS200-12SS CS200-12AL 2" 2-57/64" 2-60/64" 250 PSI 250 PSI 3.000" 0.060" 2-7/8"

CS250-5CS - - 2-1/2" 2-57/64" 2-60/64" - - 3.000" 0.060" 3-1/4"
CS250-6CS - - 2-1/2" 2-61/64" 3" - 3.063" 0.060" 3-1/4"
CS250-7CS - - 2-1/2" 3-1/64" 3-4/64" - 3.125" 0.060" 3-1/4"
CS250-8CS - - 2-1/2" 3-5/64" 3-8/64" - 3.188" 0.060" 3-1/4"

CS300-1CS CS300-1SS - 3" 3-13/64" 3-16/64" 125 PSI 200 PSI 3.313" 0.090" 3-3/4"
CS300-2CS CS300-2SS - 3" 3-17/64" 3-20/64" 125 PSI 200 PSI 3.375" 0.090" 3-3/4"
CS300-3CS CS300-3SS - 3" 3-21/64" 3-24/64" 125 PSI 200 PSI 3.438" 0.090" 3-3/4"
CS300-4CS CS300-4SS - 3" 3-25/64" 3-28/64" 125 PSI 200 PSI 3.500" 0.090" 3-3/4"
CS300-5CS CS300-5SS CS300-5AL 3" 3-29/64" 3-32/64" 125 PSI 200 PSI 3.563" 0.090" 3-3/4"
CS300-6CS CS300-6SS - 3" 3-33/64" 3-36/64" 125 PSI 200 PSI 3.625" 0.090" 3-3/4"
CS300-7CS CS300-7SS - 3" 3-37/64" 3-40/64" 125 PSI 200 PSI 3.688" 0.090" 3-3/4"
CS300-8CS CS300-8SS CS300-8AL 3" 3-41/64" 3-44/64" 125 PSI 200 PSI 3.750" 0.090" 3-3/4"
CS300-9CS CS300-9SS - 3" 3-45/64" 3-48/64" 125 PSI 200 PSI 3.813" 0.090" 3-3/4"
CS300-10CS CS300-10SS CS300-10AL 3" 3-49/64" 3-52/64" 125 PSI 200 PSI 3.875" 0.090" 3-3/4"
CS300-11CS CS300-11SS - 3" 3-53/64" 3-56/64" 125 PSI 200 PSI 3.938" 0.090" 3-3/4"
CS300-12CS CS300-12SS CS300-12AL 3" 3-57/64" 3-60/64" 125 PSI 200 PSI 4.000" 0.090" 3-3/4"
CS300-13CS CS300-13SS - 3" 3-61/64" 4" 125 PSI 200 PSI 4.063" 0.090" 3-3/4"
CS300-14CS CS300-14SS - 3" 4-1/64" 4-4/64" 125 PSI 200 PSI 4.125" 0.090" 3-3/4"
CS300-15CS CS300-15SS - 3" 4-5/64" 4-8/64" 125 PSI 200 PSI 4.188" 0.090" 3-3/4"
CS300-16CS CS300-16SS - 3" 4-9/64" 4-12/64" 125 PSI 200 PSI 4.250" 0.090" 3-3/4"

CS400-1CS CS400-1SS - 4" 4-13/64" 4-16/64" 110 PSI 175 PSI 4.313" 0.090" 3-3/4"
CS400-2CS CS400-2SS - 4" 4-17/64" 4-20/64" 110 PSI 175 PSI 4.375" 0.090" 3-3/4"
CS400-3CS CS400-3SS - 4" 4-21/64" 4-24/64" 110 PSI 175 PSI 4.438" 0.090" 3-3/4"
CS400-4CS CS400-4SS - 4" 4-25/64" 4-28/64" 110 PSI 175 PSI 4.500" 0.090" 3-3/4"
CS400-5CS CS400-5SS - 4" 4-29/64" 4-32/64" 110 PSI 175 PSI 4.563" 0.090" 3-3/4"
CS400-6CS CS400-6SS - 4" 4-33/64" 4-36/64" 110 PSI 175 PSI 4.625" 0.090" 3-3/4"
CS400-7CS CS400-7SS - 4" 4-37/64" 4-40/64" 110 PSI 175 PSI 4.688" 0.090" 3-3/4"
CS400-8CS CS400-8SS - 4" 4-41/64" 4-44/64" 110 PSI 175 PSI 4.750" 0.090" 3-3/4"
CS400-9CS CS400-9SS - 4" 4-45/64" 4-48/64" 110 PSI 175 PSI 4.813" 0.090" 3-3/4"
CS400-10CS CS400-10SS CS400-10Al 4" 4-49/64" 4-52/64" 110 PSI 175 PSI 4.875" 0.090" 3-3/4"
CS400-11CS CS400-11SS CS400-11AL 4" 4-53/64" 4-56/64" 110 PSI 175 PSI 4.938" 0.090" 3-3/4"
CS400-12CS CS400-12SS CS400-12AL 4" 4-57/64" 4-60/64" 110 PSI 175 PSI 5.000" 0.090" 3-3/4"
CS400-13CS CS400-13SS - 4" 4-61/64" 5" 110 PSI 175 PSI 5.063" 0.090" 3-3/4"
CS400-14CS CS400-14SS - 4" 5-1/64" 5-4/64" 110 PSI 175 PSI 5.125" 0.090" 3-3/4"
CS400-15CS CS400-15SS - 4" 5-5/64" 5-8/64" 110 PSI 175 PSI 5.188" 0.090" 3-3/4"
CS400-16CS CS400-16SS - 4" 5-9/64" 5-12/64" 110 PSI 175 PSI 5.250" 0.090" 3-3/4"

CS600-1CS CS600-1SS - 6" 6-21/64" 6-28/64" - - 6.500" 0.120" 5-1/2"
CS600-2CS CS600-2SS - 6" 6-29/64" 6-36/64" - - 6.625" 0.120" 5-1/2"
CS600-3CS CS600-3SS - 6" 6-37/64" 6-44/64" - - 6.750" 0.120" 5-1/2"
CS600-4CS CS600-4SS - 6" 6-45/64" 6-52/64" - - 6.875" 0.120" 5-1/2"
CS600-5CS CS600-5SS - 6" 6-53/64" 6-60/64" - - 7.000" 0.120" 5-1/2"
CS600-6CS CS600-6SS - 6" 6-61/64" 7-4/64" - - 7.125" 0.120" 5-1/2"
CS600-7CS CS600-7SS - 6" 7-5/64" 7-12/64" - - 7.250" 0.120" 5-1/2"
CS600-8CS CS600-8SS - 6" 7-13/64" 7-20/64" - - 7.375" 0.120" 5-1/2"
CS600-9CS CS600-9SS - 6" 7-21/64" 7-28/64" - - 7.500" 0.120" 5-1/2"

* Based on using crimp cam and groove shanks
** Based on using King Crimp nipples
