CS19-6X6 Couplamatic VARI-CRIMP Coupling - Male Inverted Flare - 45° - 3/8" Hose ID - 5/8x18 Thread (Old Part Number: 6139V)

CS19-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 5/8x18 Thread Male Inverted Flare | 45° Elbow | Trivalent Zinc Plating | Replaces: 6139V

Save $5.33 Save $5.33
$13.33
$13.33 - $13.33
$13.33
$8.00
$8.00 - $8.00
$8.00

Couplamatic Systems Inc.
Vari-Crimp Couplings - Male Inverted Flare - 45°
Specifications for Variant SKU: CS19-6X6 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 45 Degree
Ends Configuration: 3/8in Male Inverted Flare, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

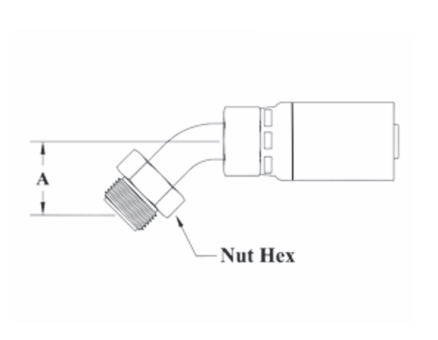

Part Number Hose ID Thread Size Tube OD A-DropInches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS19-4X3 1/4" 3/8x24 3/16" 0.69 3/8" 4172V HY04-03MF45T - 04U-B43
CS19-4X4 1/4" 7/16x24 1/4" 1.08 7/16" 4109V HY04-04MF45T 167HY-4-4 04U-B44
CS19-4X5 1/4" 1/2x20 5/16" 1.10 1/2" 4136V HY04-05MF45T 167HY-5-4 04U-B45
CS19-6X4 3/8" 7/16x24 1/4" 0.93 7/16" 6178V HY06-04MF45T - 06U-B44
CS19-6X5 3/8" 1/2x20 5/16" 1.10 1/2" 6112V HY06-05MF45T 167HY-5-6 06U-B45
CS19-6X6 3/8" 5/8x18 3/8" 1.03 5/8" 6139V HY06-06MF45T 167HY-6-6 06U-B46
CS19-6X7 3/8" 11/16x18 7/16" 1.34 11/16" 6196V HY06-07MF45T - 06U-B47
CS19-8X8 1/2" 3/4x18 1/2" 1.13 3/4" 8112V HY08-08MF45T 167HY-8-8 08U-B48
CS19-8X10 1/2" 7/8x18 5/8" 0.92 7/8" 8139V - - -

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
