CS20-4X5 Couplamatic VARI-CRIMP Coupling - Male Inverted Flare - 90° - 1/4" Hose ID - 1/2x20 Thread (Old Part Number: 4139V)

CS20-4X5 by Couplamatic | VARI-CRIMP Coupling | 1/4" Hose ID x 1/2x20 Thread Male Inverted Flare | 90° Elbow | Trivalent Zinc Plating | Replaces: 4139V

Save $5.25

$13.13

$13.13 - $13.13

$13.13

$7.88

$7.88 - $7.88

$7.88

Couplamatic Systems Inc.
Vari-Crimp Couplings - Male Inverted Flare - 90°

Specifications for Variant SKU: CS20-4X5 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/16in Male Inverted Flare, 1/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

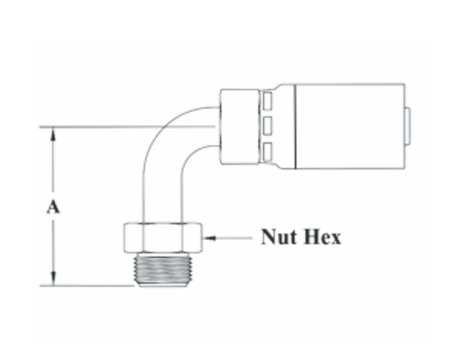

Part Number	Hose ID	Thread Size	Tube OD	A-DropInches	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A-DropInches	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS20-4X3	1/4"	3/8x24	3/16"	1.06	3/8"	4175V	HY04-03MF90T	169HY-3-4	04U-B63
CS20-4X4	1/4"	7/16x24	1/4"	1.23	7/16"	4112V	HY04-04MF90T	169HY-4-4	04U-B64
CS20-4X5	1/4"	1/2x20	5/16"	1.38	1/2"	4139V	HY04-05MF90T	169HY-5-4	04U-B65
CS20-6X4	3/8"	7/16x24	1/4"	1.36	7/16"	6181V	HY06-04MF90T	169HY-4-6	06U-B64
CS20-6X5	3/8"	1/2x20	5/16"	1.38	1/2"	6115V	HY06-05MF90T	169HY-5-6	06U-B65
CS20-6X6	3/8"	5/8x18	3/8"	1.63	5/8"	6142V	HY06-06MF90T	169HY-6-6	06U-B66
CS20-6X7	3/8"	11/16x18	7/16"	1.97	11/16"	6199V	HY06-07MF90T	169HY-7-6	06U-B67
CS20-8X8	1/2"	3/4x18	1/2"	2.20	3/4"	8115V	HY08-08MF90T	169HY-8-8	08U-B68

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
