CS24-16X16 Couplamatic VARI-CRIMP Coupling - JIC Seat - 90° Female Swivel Medium Drop - 1" Hose ID - 1-5/16x12 Thread (Old Part Number: 16653V)

CS24-16X16 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1-5/16x12 Thread JIC Seat Female Swivel Medium Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 16653V

Save $16.55 Save $16.55
$41.37
$41.37 - $41.37
$41.37
$24.82
$24.82 - $24.82
$24.82

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIC/SAE Dual Seat - 90° Female Swivel Medium Drop
Specifications for Variant SKU: CS24-16X16 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 90 Degree
Ends Configuration: 1in Female JIC, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Vari-Crimp — Universal Crimp

CS24 Vari-Crimp — JIC, Female Swivel, 90° Elbow

CS24 is the JIC, Female Swivel, 90° Elbow configuration of the Vari-Crimp system, terminating 100R1/1SN thin cover, 100R2 thin cover, 2SN, Hy-Plus I and III, 100R16/2SC, Dura-Hyd R16 and EX, 100R17, Dura-Hyd R17, 100R3 and 100R4 hose.

1

What are the main product features?
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Fits virtually every crimp machine — the most universally crimpable coupling system in the line.
  • One system across the braid hose range — terminates one and two wire braid hose from 1/4" up.
  • For 1-1/2" and 2" 100R2 thin cover — use the GW Series spiral hose couplings instead.
2

Which sizes are available?

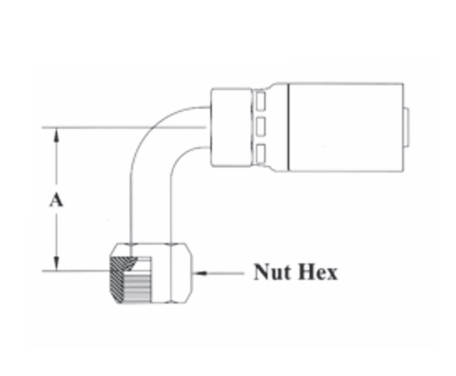

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex Previous Part Number
CS24-4X4 1/4" 7/16x20 1/4" 1.26" 9/16" 4132V
CS24-6X6* 3/8" 9/16x18 3/8" 1.50 11/16" 6162V*
CS24-8X8 1/2" 3/4x16 1/2" 1.63 7/8" 8134V
CS24-12X12* 3/4" 1-1/16x12 3/4" 2.28 1-1/4" 12653V*
CS24-16X16* 1" 1-5/16x12 1" 2.79 1-1/2" 16653V*
i
JIC Seat & Thread Only

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.

Shop Parts by Couplamatic Systems Inc
