CS28-6X6 Couplamatic VARI-CRIMP Coupling - Tube Repair Couplings - 3/8" Hose ID - 9/16x18 Thread (Old Part Number: 6106V)

CS28-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 9/16x18 Thread Tube Repair Couplings | Straight | Trivalent Zinc Plating | Replaces: 6106V | Pack of 5

Save $3.27

$29.45

$29.45 - $29.45

$29.45

$26.18

$26.18 - $26.18

$26.18

Couplamatic Systems Inc.
Vari-Crimp Couplings - Tube Repair Couplings

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: CS28-6X6 Couplamatic \| 5 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Tube Compression, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

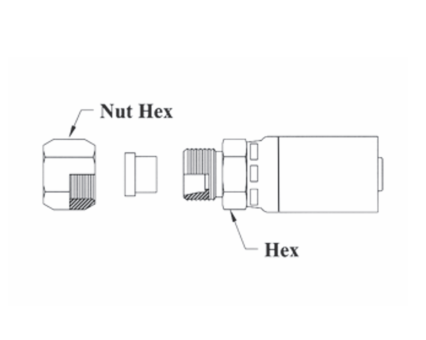

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Previous Part Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	Nut Hex	Previous Part Number	Dayco HY	Parker HY	Weatherhead U
CS28-4X4	1/4"	7/16x20	1/4"	9/16"	9/16"	4100V	HY04-04MV	111HY-4-4	04U-754
CS28-4X5	1/4"	1/2x20	5/16"	5/8"	5/8"	4103V	HY04-05MV	-	04U-755
CS28-6X5	3/8"	1/2x20	5/16"	11/16"	5/8"	6103V	HY06-05MV	111HY-5-6	06U-755
CS28-6X6	3/8"	9/16x18	3/8"	11/16"	11/16"	6106V	HY06-06MV	111HY-6-6	06U-756
CS28-6X8	3/8"	3/4x16	1/2"	3/4"	7/8"	6800V	HY06-08MV	111HY-8-6	-
CS28-8X8	1/2"	3/4x16	1/2"	7/8"	7/8"	8103V	HY08-08MV	111HY-8-8	08U-758
CS28-8X10	1/2"	7/8x14	5/8"	15/16"	1"	8106V	HY08-10MV	111HY-10-8	08U-760
CS28-12X12	3/4"	1-1/16x12	3/4"	1-1/8"	1-1/4"	12100V	HY12-12MV	111HY-12-12	12U-762
CS28-16X16	1"	1-5/16x12	1"	1-3/8"	1-1/2"	16100V	HY16-16MV	111HY-16-16	16U-766

Nuts and Sleeves
Tube Size	Nut Part Number	Sleeve Part Number
1/4"	718x4	719x4
5/16"	718x5	719x5
3/8"	718x6	719x6
1/2"	718x8	719x8
5/8"	718x10	719x10
3/4"	718x12	719x12
1"	718x16	719x16

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
