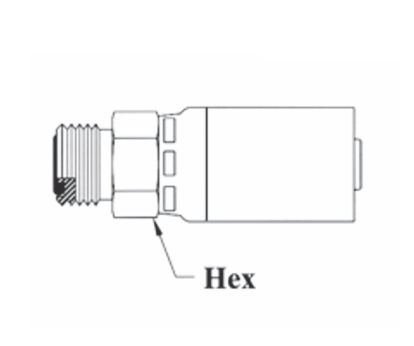

CS29-6X6 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - Male Solid - 3/8" Hose ID - 11/16x16 Thread (Old Part Number: 6E66V)

CS29-6X6 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x 11/16x16 Thread O-Ring Face Seal | ORF Male Solid | Straight | Trivalent Zinc Plating | Replaces: 6E66V

Save $3.65

$9.12

$9.12 - $9.12

$9.12

$5.47

$5.47 - $5.47

$5.47

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - Male Solid

Quantity

Specifications for Variant SKU: CS29-6X6 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/8in Male O-Ring Face Seal, 3/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. Couplings are capped with O-ring included.

Part Number	Hose ID	Thread Size	Tube OD	Hex Size	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Hex Size	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS29-4X4	1/4"	9/16x18	1/4"	5/8"	4E64V	HY04-04OM	1J0HY-4-4	04U-E64
CS29-6X6	3/8"	11/16x16	3/8"	3/4"	6E66V	HY06-06OM	1J0HY-6-6	06U-E66
CS29-6X8	3/8"	13/16x16	1/2"	7/8"	6E68V	-	-	06U-E68
CS29-8X8	1/2"	13/16x16	1/2"	7/8"	8E68V	HY08-08OM	1J0HY-8-8	08U-E68
CS29-8X10	1/2"	1x14	5/8"	1-1/16"	8E70V	HY08-10OM	1J0HY-10-8	08U-E70
CS29-8X12	1/2"	1-3/16x12	3/4"	1-1/4"	8E72V	HY08-12OM	1J0HY-12-8	08U-E72
CS29-10X10	5/8"	1x14	5/8"	1-1/16"	10E70V	-	-	10U-E70
CS29-10X12	5/8"	1-3/16x12	3/4"	1-1/4"	10E72V	-	-	10U-E72
CS29-12X12	3/4"	1-3/16x12	3/4"	1-1/4"	12E72V	-	-	12U-E72
CS29-16X16	1"	1-7/16x12	1"	1-1/2"	16E76V	HY16-16OM	-	16U-E76

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
