CS30-16X16 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - Female Swivel - 1" Hose ID - 1-7/16x12 Thread (Old Part Number: 16S76V)

CS30-16X16 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x 1-7/16x12 Thread O-Ring Face Seal | ORF Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 16S76V | Pack of 5

Save $13.24

$119.15

$119.15 - $119.15

$119.15

$105.91

$105.91 - $105.91

$105.91

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - Female Swivel

Package Quantity: 5 EA

Quantity

Specifications for Variant SKU: CS30-16X16 Couplamatic \| 5 \|
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	1in Female O-Ring Face Seal, 1in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

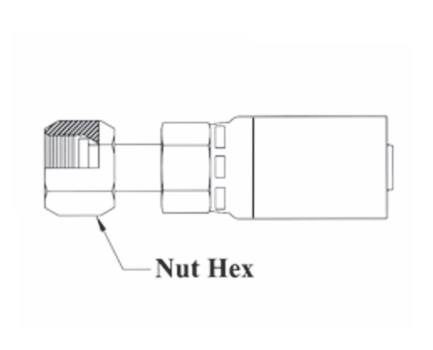

Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	Nut Hex	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS30-4X4	1/4"	9/16x18	1/4"	11/16"	4S64V	HY04-04OFT	1JSHY-4-4	04U-S64
CS30-4X6	1/4"	11/16x16	3/8"	13/16"	4S66V	HY04-06OFT	1JSHY-6-4	04U-S66
CS30-4X8	1/4"	13/16x16	1/2"	15/16"	4S68V	HY04-08OFT	1JSHY-8-4	04U-S68
CS30-6X4	3/8"	9/16x18	1/4"	11/16"	6S64V	HY06-04OFT	-	06U-S64
CS29-6X6	3/8"	11/16x16	3/8"	13/16"	6S66V	HY06-06OFT	1JSHY-6-6	06U-S66
CS30-6X8	3/8"	13/16x16	1/2"	15/16"	6S68V	HY06-08OFT	1JSHY-8-6	06U-S68
CS30-8X6	1/2"	11/16x16	3/8"	13/16"	8S66V	HY08-06OFT	1JSHY-6-8	08U-S66
CS30-8X8	1/2"	13/16x16	1/2"	15/16"	8S68V	HY08-08OFT	1JSHY-8-8	08U-S68
CS30-8X10	1/2"	1x14	5/8"	1-1/8"	8S70V	HY08-10OFT	1JSHY-10-8	08U-S70
CS30-8X12	1/2"	1-3/16x12	3/4"	1-3/8"	8S72V	HY08-12OFT	1JSHY-12-8	08U-S72
CS30-10X10	5/8"	1x14	5/8"	1-1/8"	10S70V	HY10-10OFT	1JSHY-10-10	10U-S70
CS30-10X12	5/8"	1-3/16x12	3/4"	1-3/8"	10S72V	HY10-12OFT	1JSHY-12-10	10U-S72
CS30-12X10	3/4"	1x14	5/8"	1-1/8"	12S70V	HY12-10OFT	1JSHY-10-12	12U-S70
CS30-12X12	3/4"	1-3/16x12	3/4"	1-3/8"	12S72V	HY12-12OFT	1JSHY-12-12	12U-S72
CS30-12X16	3/4"	1-7/16x12	1"	1-5/8"	12S76V	HY12-16OFT	1JSHY-16-12	12U-S76
CS30-16X12	1"	1-3/16x12	3/4"	1-3/8"	16S72V	-	-	-
CS30-16X16	1"	1-7/16x12	1"	1-5/8"	16S76V	HY16-16OFT	1JSHY-16-16	16U-S76
CS30-16X20	1"	1-11/16x12	1-1/4"	1-7/8"	16S80V	-	-	-
CS30-20X20	1-1/4"	1-11/16x12	1-1/4"	1-7/8"	20S80V	HY20-20OFT	1JSHY-20-20	20U-S80

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
