CS31-12X16 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - 45° Female Swivel - 3/4" Hose ID - 1-7/16x12 Thread (Old Part Number: 12L76V)

CS31-12X16 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x 1-7/16x12 Thread O-Ring Face Seal | ORF Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 12L76V

Save $3.79 Save $3.79
$34.08
$34.08 - $34.08
$34.08
$30.29
$30.29 - $30.29
$30.29

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 45° Female Swivel
Specifications for Variant SKU: CS31-12X16 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 45 Degree
Ends Configuration: 1in Female O-Ring Face Seal, 3/4in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

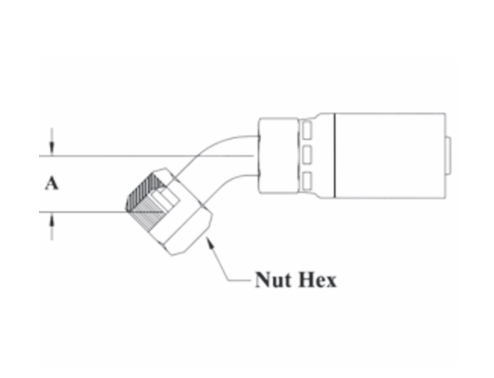

Part Number Hose ID Thread Size Tube OD A-Drop Inches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS31-4X4 1/4" 9/16x18 1/4" 0.41 11/16" 4L64V HY04-04OF45T 1J7HY-4-4 04U-L64
CS31-4X6 1/4" 11/16x16 3/8" 0.43 13/16" 4L66V HY04-06OF45T 1J7HY-6-4 04U-L66
CS31-6X6 3/8" 11/16x16 3/8" 0.43 13/16" 6L66V HY06-06OF45T 1J7HY-6-6 06U-L66
CS31-6X8 3/8" 13/16x16 1/2" 0.60 15/16" 6L68V HY06-08OF45T 1J7HY-8-6 06U-L68
CS31-8X6 1/2" 11/16x16 3/8" 0.43 13/16" 8L66V HY08-06OF45T 1J7HY-6-8 08U-L66
CS31-8X8 1/2" 13/16x16 1/2" 0.59 15/16" 8L68V HY08-08OF45T 1J7HY-8-8 08U-L68
CS31-8X10 1/2" 1x14 5/8" 0.68 1-1/8" 8L70V HY08-10OF45T 1J7HY-10-8 08U-L70
CS31-10X10 5/8" 1x14 5/8" 0.68 1-1/8" 10L70V HY10-10OF45T 1J7HY-10-10 10U-L70
CS31-10X12 5/8" 1-3/16x12 3/4" 0.83 1-3/8" 10L72V HY10-12OF45T 1J7HY-12-10 10U-L72
CS31-12X10 3/4" 1x14 5/8" 0.68 1-1/8" 12L70V HY12-10OF45T 1J7HY-10-12 12U-L70
CS31-12X12 3/4" 1-3/16x12 3/4" 0.83 1-3/8" 12L72V HY12-12OF45T 1J7HY-12-12 12U-L72
CS31-12X16 3/4" 1-7/16x12 1" 1.15 1-5/8" 12L76V - - 12U-L76
CS31-16X16 1" 1-7/16x12 1" 1.15 1-5/8" 16L76V HY16-16OF45T 1J7HY-16-16 16U-L76
CS31-16X20 1" 1-11/16x12 1-1/4" 1.10 1-7/8" 16L80V - - -
CS31-20X20 1-1/4" 1-11/16x12 1-1/4" 1.07 1-7/8" 20L80V HY20-20OF45T - 20U-L80

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
