CS34-10X10 Couplamatic VARI-CRIMP Coupling - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop - 5/8" Hose ID - 1x14 Thread (Old Part Number: 10J40V)

CS34-10X10 by Couplamatic | VARI-CRIMP Coupling | 5/8" Hose ID x 1x14 Thread O-Ring Face Seal | ORF Female Swivel Medium Drop | 90° Elbow | Trivalent Zinc Plating | Replaces: 10J40V

Save $11.93

$29.83

$29.83 - $29.83

$29.83

$17.90

$17.90 - $17.90

$17.90

Couplamatic Systems Inc.
Vari-Crimp Couplings - O-Ring Face Seal (ORF) - 90° Female Swivel Medium Drop

Specifications for Variant SKU: CS34-10X10 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	90 Degree
Ends Configuration:	5/8in Female O-Ring Face Seal, 5/8in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

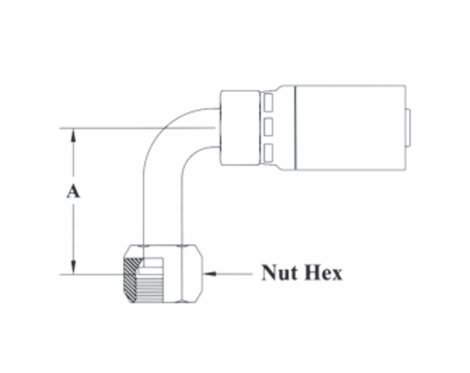

Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	Thread Size	Tube OD	A-Drop Inches	Nut Hex	PreviousPart Number	Weatherhead U
CS34-4X4	1/4"	9/16x18	1/4"	1.26	11/16"	4J34V	04U-J34
CS34-4X6	1/4"	11/16x16	3/8"	1.51	13/16"	4J36V	-
CS34-6X6	3/8"	11/16x16	3/8"	1.51	13/16"	6J36V	06U-J36
CS32-6X8	3/8"	13/16x16	1/2"	1.62	15/16"	6J38V	06U-J38
CS34-8X6	1/2"	11/16x16	3/8"	1.51	13/16"	8J36V	08U-J36
CS34-8X8	1/2"	13/16x16	1/2"	1.62	15/16"	8J38V	08U-J38
CS34-8X12	1/2"	1-3/16x12	3/4"	2.28	1-3/8"	8J42V	-
CS34-10X10	5/8"	1x14	5/8"	1.85	1-1/8"	10J40V	-
CS34-12X10	3/4"	1x14	5/8"	1.85	1-1/8"	12J40V	12U-J40
CS34-12X12	3/4"	1-3/16x12	3/4"	2.28	1-3/8"	12J42V	12U-J42
CS34-16X16	1"	1-7/16x12	1"	2.78	1-5/8"	16J46V	16U-J46
CS34-16X20	1"	1-11/16x12	1-1/4"	3.07	1-7/8"	16J50V	-
CS34-20X20	1-1/4"	1-11/16x12	1-1/4"	3.09	1-7/8"	20J50V	20U-J50

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.

Couplamatic Systems Inc

In the business for over 50 years, we're here to bring you the highest quality, most rigorously tested, American made hydraulic components on the market. We utilize state-of-the-art facilities and equipment to produce industry leading, quality hydraulic products. When you buy Couplamatic System Inc. products, you are buying precision and reliability.
