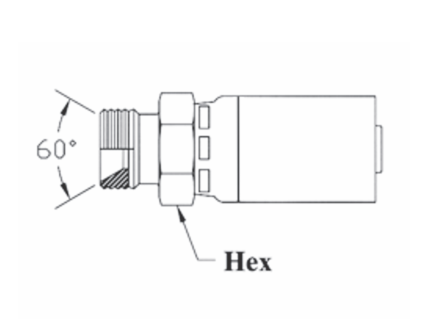

CS36-12X12 Couplamatic VARI-CRIMP Coupling - BSPP - British Standard Parallel 60° Seat - Male Pipe Solid - 3/4" Hose ID - G-3/4-14 Thread - 3/4" BSPP (Old Part Number: 12P62V)

CS36-12X12 by Couplamatic | VARI-CRIMP Coupling | 3/4" Hose ID x G-3/4-14 Thread Male Pipe Solid | 3/4" BSPP | Straight | Trivalent Zinc Plating | Replaces: 12P62V

Save $1.49

$13.42

$13.42 - $13.42

$13.42

$11.93

$11.93 - $11.93

$11.93

Couplamatic Systems Inc.
Vari-Crimp Couplings - BSPP - British Standard Parallel 60° Seat - Male Pipe Solid

Quantity

Specifications for Variant SKU: CS36-12X12 Couplamatic
Series:	VARI-CRIMP Series
Shape (Orientation):	Straight
Ends Configuration:	3/4in Male BSPP, 3/4in Hose Barb
Material(s):	Steel
Compatible with the following Series:	56MB-1 Series \| 57MB-2 Series \| 56MB-2 Series \| HPI Series \| HPIII Series \| 2SN Series \| R16 Series \| DH16 Series \| DHEX16 Series \| R17 Series \| R17R Series \| WDH17 Series \| 3319A Series

Description:
The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating. G. as part of thread size is ISO designation for parallel thread.

Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	PreviousPart Number	Cross Reference Part Numbers
Part Number	Hose ID	BSPP Size	Thread Size	Hex Size	PreviousPart Number	Dayco HY	Parker HY	Weatherhead U
CS36-4X4	1/4"	1/4"	G-1/4-19	11/16"	4P54V	HY04-04BP	1D9HY-4-4	04U-P54
CS36-6X6	3/8"	3/8"	G-3/8-19	3/4"	6P56V	HY06-06BP	1D9HY-6-6	06U-P56
CS36-6X8	3/8"	1/2"	G-1/2-14	1"	6P58V	HY06-08BP	1D9HY-8-6	06U-P58
CS36-8X6	1/2"	3/8"	G-3/8-19	7/8"	8P56V	HY08-06BP	-	08U-P56
CS36-8X8	1/2"	1/2"	G-1/2-14	1"	8P58V	HY08-08BP	1D9HY-8-8	08U-P58
CS36-12X12	3/4"	3/4"	G-3/4-14	1-1/8"	12P62V	HY12-12BP	-	12U-P62

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
