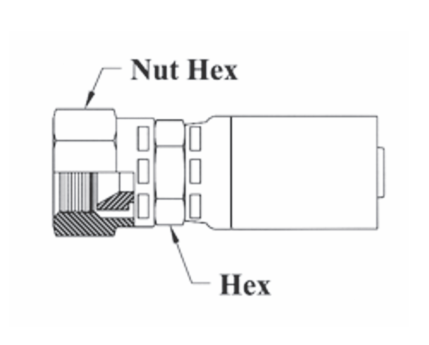

CS40-16X16 Couplamatic VARI-CRIMP Coupling - JIS 30° Flare Parallel Pipe - Female Swivel - 1" Hose ID - G-1-11 Thread (Old Part Number: 16L16V)

CS40-16X16 by Couplamatic | VARI-CRIMP Coupling | 1" Hose ID x G-1-11 Thread JIS 30° Flare Parallel Pipe Female Swivel | Straight | Trivalent Zinc Plating | Replaces: 16L16V

Save $13.81 Save $13.81
$34.52
$34.52 - $34.52
$34.52
$20.71
$20.71 - $20.71
$20.71

Couplamatic Systems Inc.
Vari-Crimp Couplings - JIS 30° Flare Parallel Pipe - Female Swivel
Specifications for Variant SKU: CS40-16X16 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): Straight
Ends Configuration: 1in Female JIS, 1in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • G. as part of thread size is ISO designation for parallel thread.
Part Number Hose ID Tube Size Thread Size Hex Size Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS40-4X4 1/4" 1/4" G-1/4-19 9/16" 3/4" 4L04V HY04-04MJPF - 04U-04L
CS40-4X6 1/4" 3/8" G-3/8-19 11/16" 7/8" 4L06V - - -
CS40-6X6 3/8" 3/8" G-3/8-19 11/16" 7/8" 6L06V HY06-06MJPF - 06U-06L
CS40-8X8 1/2" 1/2" G-1/2-14 7/8" 1-1/16" 8L08V HY08-08MJPF - 08U-08L
CS40-12X12 3/4" 3/4" G-3/4-14 1-1/8" 1-1/4" 12L12V HY12-12MJPF 1FUHY-12-12-SM 12U-12L
CS40-16X16 1" 1" G-1-11 1-3/8" 1-1/2" 16L16V HY16-16MJFP - 16U-16L

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
