CS41-6X12 Couplamatic VARI-CRIMP Coupling - DIN Light Universal Seat - Female Swivel 45° Bend - 3/8" Hose ID - M18x1.5 Thread (Old Part Number: 6D12V)

CS41-6X12 by Couplamatic | VARI-CRIMP Coupling | 3/8" Hose ID x M18x1.5 Thread DIN Light Universal Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 6D12V

Save $8.47 Save $8.47
$21.18
$21.18 - $21.18
$21.18
$12.71
$12.71 - $12.71
$12.71

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Light Universal Seat - Female Swivel 45° Bend
Specifications for Variant SKU: CS41-6X12 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 45 Degree
Ends Configuration: L12 Female DIN, 3/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.

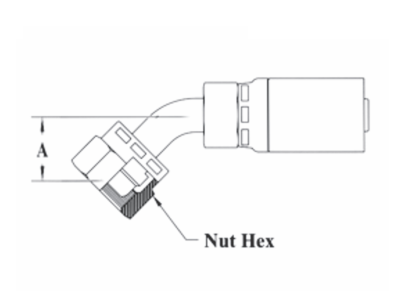

Part Number Hose ID Tube Size Thread Size A-DropInches Nut Hex PreviousPart Number Cross Reference Part Numbers
Dayco HY Parker HY Weatherhead U
CS41-4X8 1/4" 8mm M14x1.5 0.96" 11/16" 4D08V HY04-08RU14A45T 1C4HY-8-4 04U-08D
CS41-4X10 1/4" 10mm M16x1.5 0.96" 3/4" 4D10V - - 04U-10D
CS41-6X10 3/8" 10mm M16x1.5 0.96" 3/4" 6D10V HY06-10RU16A45T 1C4HY-10-6 06U-10D
CS41-6X12 3/8" 12mm M18x1.5 1.00" 7/8" 6D12V - - 06U-12D
CS41-8X15 1/2" 15mm M22x1.5 1.18" 1-1/16" 8D15V HY08-15RU22A45T 1C4HY-15-8 08U-15D
CS41-10X18 5/8" 18mm M26x1.5 1.25" 1-1/4" 10D18V - - 10U-18D
CS41-12X22 3/4" 22mm M30x2.0 1.41" 1-1/2" 12D22V HY12-22RU30B45T 1C4HY-22-12 12U-22D

The cross reference is for thread identification and hose inside diameter only. Exact dimensions of the couplings may vary from manufacturer to manufacturer. Please check hose cut off factor, tube length, and tube drop carefully.
