CS42-10X20 Couplamatic VARI-CRIMP Coupling - Din Heavy 24° Seat - Female Swivel 45° Bend - 5/8" Hose ID - M30x2.0 Thread (Old Part Number: 10H20V)

CS42-10X20 by Couplamatic | VARI-CRIMP Coupling | 5/8" Hose ID x M30x2.0 Thread Din Heavy 24° Seat Female Swivel | 45° Elbow | Trivalent Zinc Plating | Replaces: 10H20V

Save $2.91 Save $2.91
$26.22
$26.22 - $26.22
$26.22
$23.31
$23.31 - $23.31
$23.31

Couplamatic Systems Inc.
Vari-Crimp Couplings - DIN Heavy 24° Seat - Female Swivel 45° Bend
Specifications for Variant SKU: CS42-10X20 Couplamatic
Series: VARI-CRIMP Series
Shape (Orientation): 45 Degree
Ends Configuration: S20 Female DIN, 5/8in Hose Barb
Material(s): Steel
Compatible with the following Series: 56MB-1 Series  |   57MB-2 Series  |   56MB-2 Series  |   HPI Series  |   HPIII Series  |   2SN Series  |   R16 Series  |   DH16 Series  |   DHEX16 Series  |   R17 Series  |   R17R Series  |   WDH17 Series  |   3319A Series
Description:
  • The Vari-Crimp coupling is compatible with virtually all Crimp Machines. Trivalent Zinc Plating.
  • Includes O-Ring.

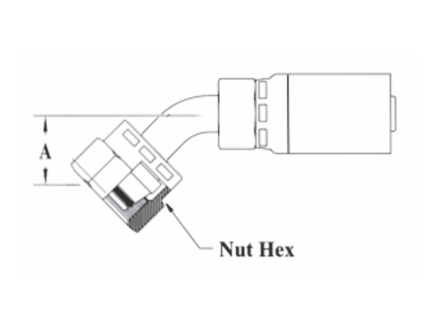

Part Number Hose ID Tube Size Thread Size A-Drop Inches Nut Hex PreviousPart Number
CS42-4X8 1/4" 10mm M18x1.5 0.96" 7/8" 4H10V
CS42-6X12 3/8" 12mm M20x1.5 1.13" 1" 6H12V
CS42-8X16 1/2" 16mm M24x1.5 1.25" 1-1/8" 8H16V
CS42-10X20 5/8" 20mm M30x2.0 1.50" 1-1/2" 10H20V
